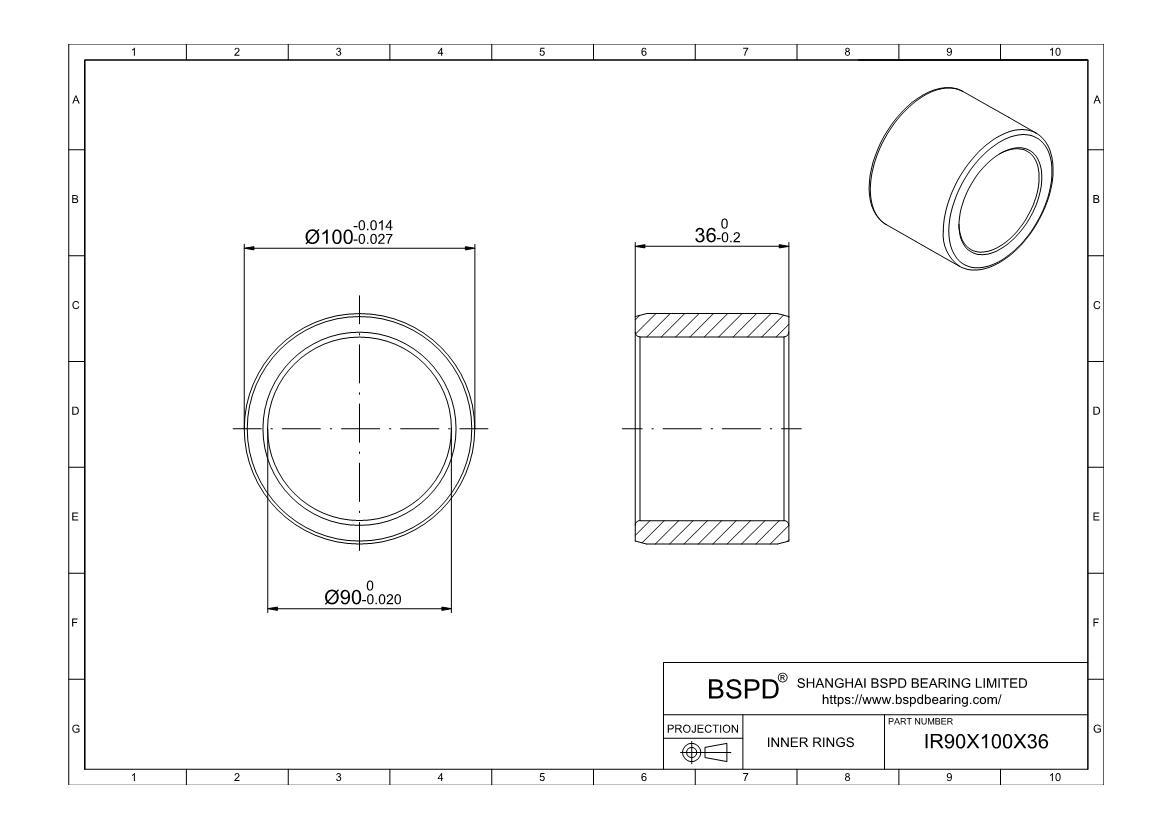

IR90X100X36
Inner Rings
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 100 mm； Width (Thickness): 36 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR90X100X36-XL |
| For Shaft Diameter | 90 mm |
| Bore Dia (d) | 90 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 100 mm |
| Outer Dia Tolerance | -0.027mm to -0.014mm |
| Width (B) | 36 mm |
| Width Tolerance | -0.2mm to 0 |
| rmin | 1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 406 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR90X100X36 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
