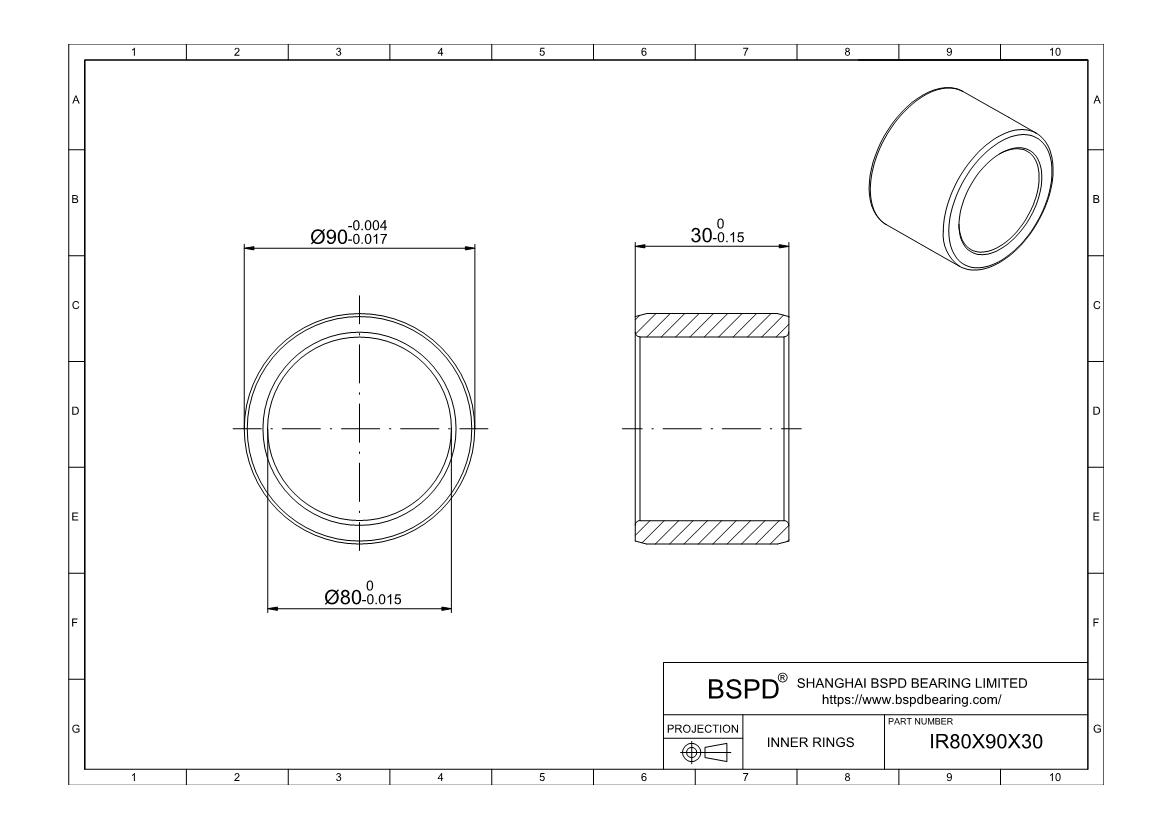

IR80X90X30
Inner Rings
Dimensions: Bore (Inner) Diameter: 80 mm； Outer Diameter: 90 mm； Width (Thickness): 30 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR80X90X30-XL |
| For Shaft Diameter | 80 mm |
| Bore Dia (d) | 80 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 90 mm |
| Outer Dia Tolerance | -0.017mm to -0.004mm |
| Width (B) | 30 mm |
| Width Tolerance | -0.15mm to 0 |
| rmin | 1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 304 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR80X90X30 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
