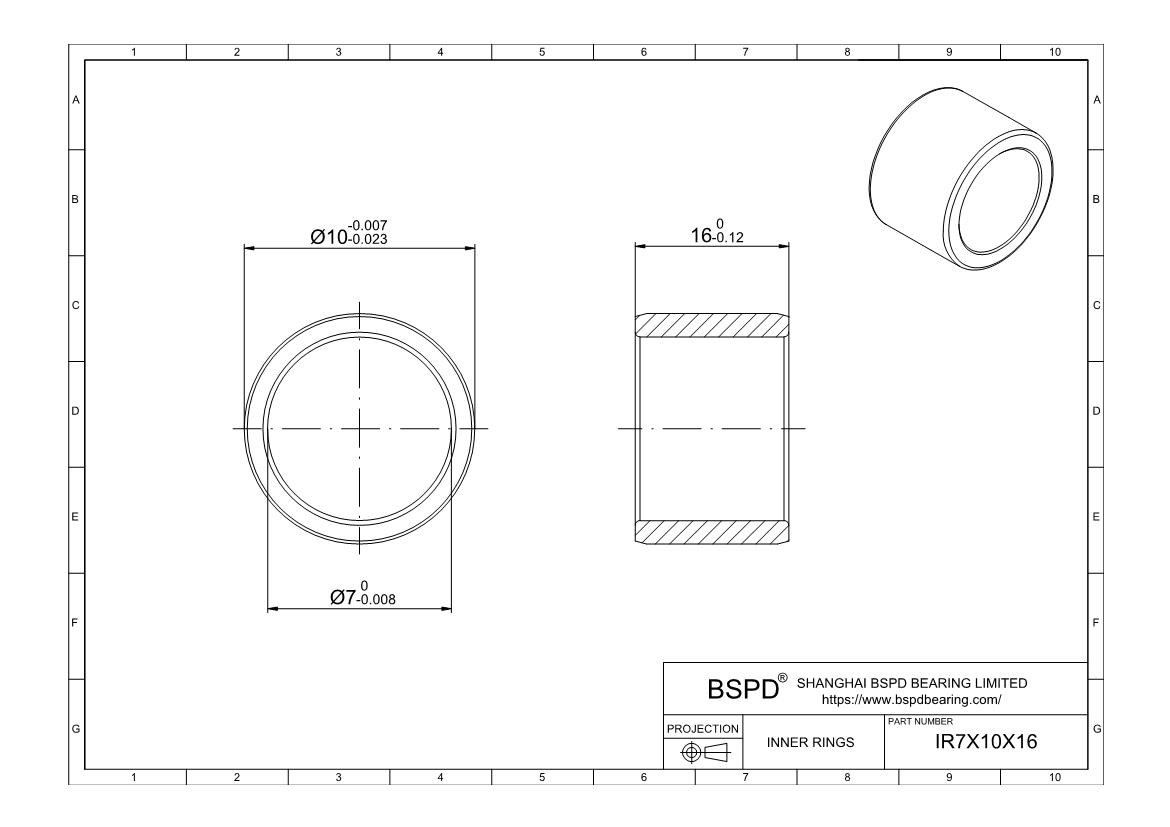

IR7X10X16
Inner Rings
Dimensions: Bore (Inner) Diameter: 7 mm； Outer Diameter: 10 mm； Width (Thickness): 16 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR7X10X16-XL |
| For Shaft Diameter | 7 mm |
| Bore Dia (d) | 7 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 10 mm |
| Outer Dia Tolerance | -0.023mm to -0.007mm |
| Width (B) | 16 mm |
| Width Tolerance | -0.12mm to 0 |
| rmin | 0.3 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 4.9 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR7X10X16 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
