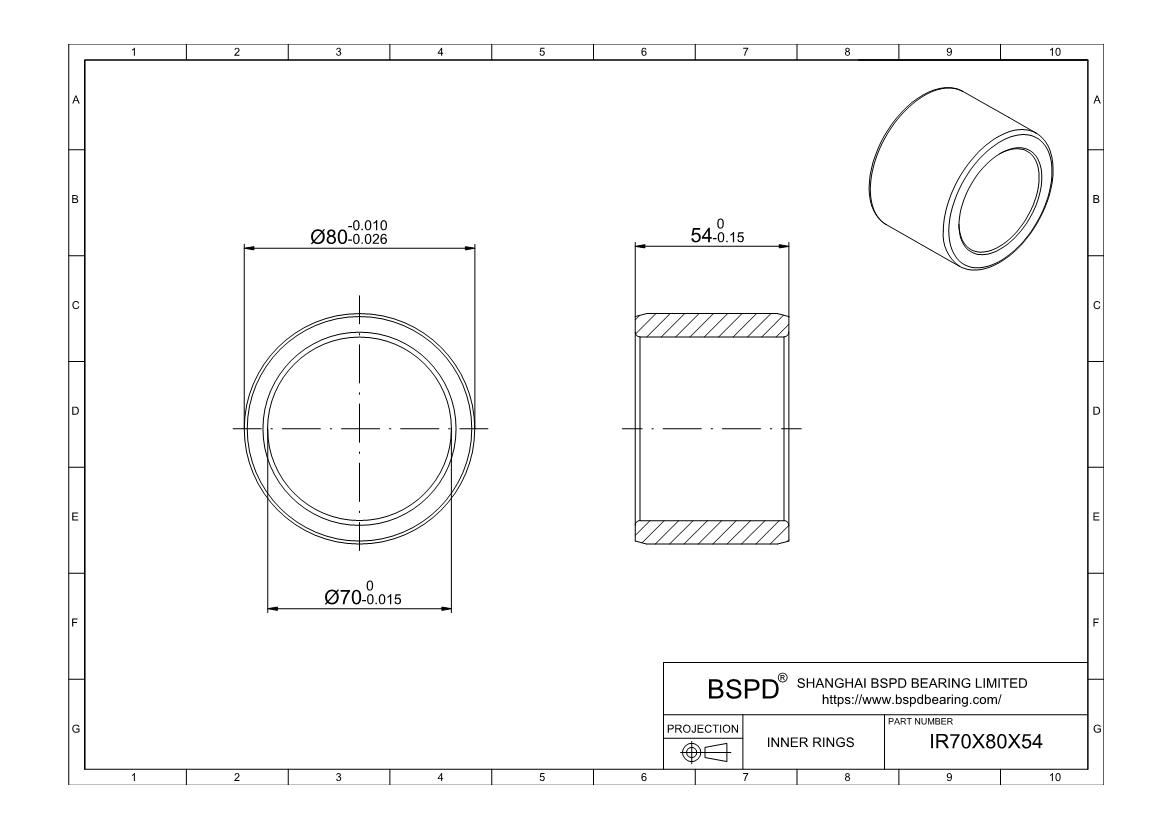

IR70X80X54
Inner Rings
Dimensions: Bore (Inner) Diameter: 70 mm； Outer Diameter: 80 mm； Width (Thickness): 54 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR70X80X54-XL |
| For Shaft Diameter | 70 mm |
| Bore Dia (d) | 70 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 80 mm |
| Outer Dia Tolerance | -0.026mm to -0.010mm |
| Width (B) | 54 mm |
| Width Tolerance | -0.15mm to 0 |
| rmin | 1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 488 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR70X80X54 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
