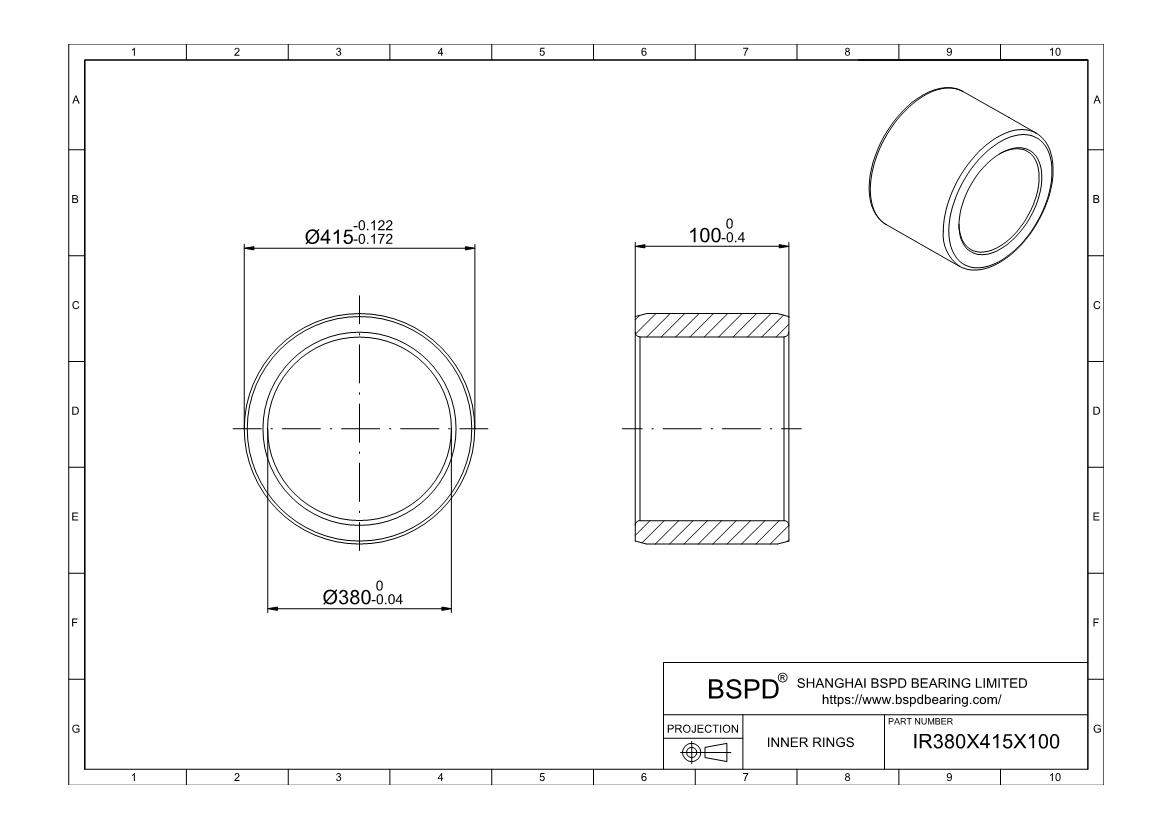

IR380X415X100
Inner Rings
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 415 mm； Width (Thickness): 100 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR380X415X100-XL |
| For Shaft Diameter | 380 mm |
| Bore Dia (d) | 380 mm |
| Bore Dia Tolerance | -0.04mm to 0 |
| Outer Dia | 415 mm |
| Outer Dia Tolerance | -0.172mm to -0.122mm |
| Width (B) | 100 mm |
| Width Tolerance | -0.4mm to 0 |
| rmin | 2.1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 16700 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR380X415X100 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
