IR340X370X80
Inner Rings

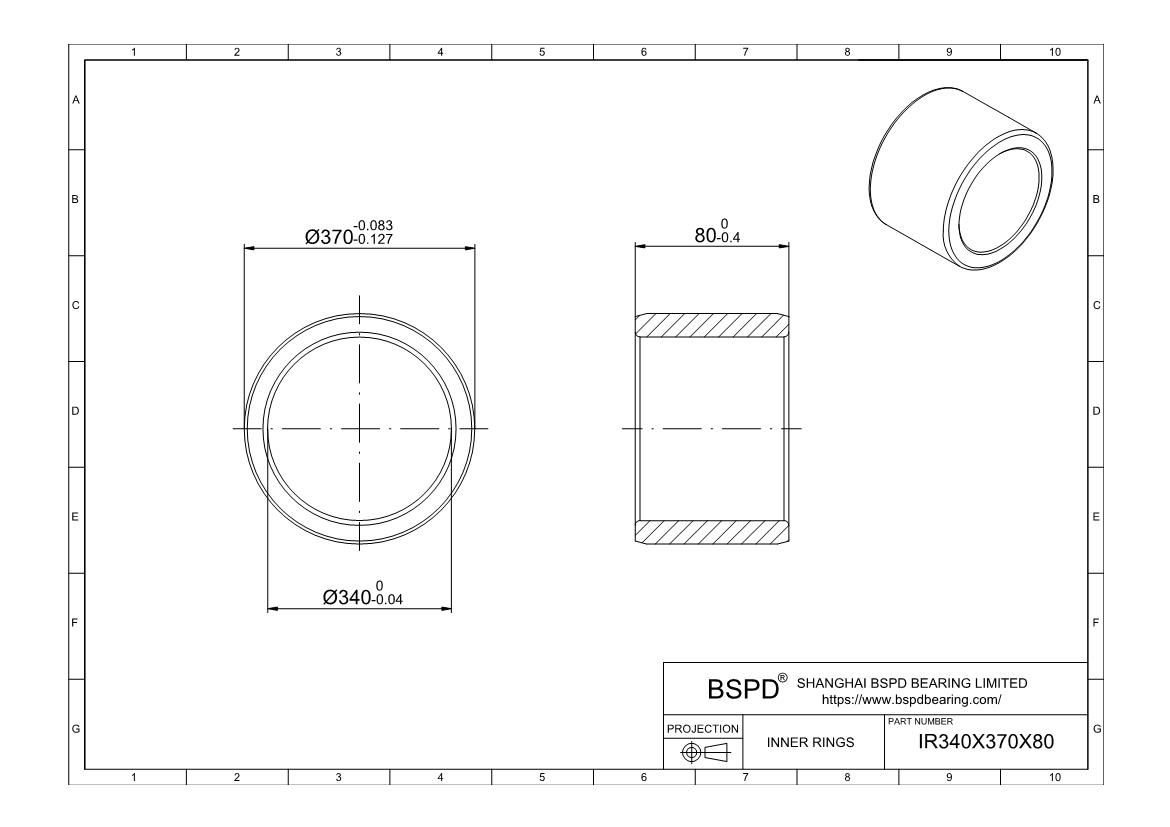

Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 370 mm； Width (Thickness): 80 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR340X370X80-XL |
| For Shaft Diameter | 340 mm |
| Bore Dia (d) | 340 mm |
| Bore Dia Tolerance | -0.04mm to 0 |
| Outer Dia | 370 mm |
| Outer Dia Tolerance | -0.127mm to -0.083mm |
| Width (B) | 80 mm |
| Width Tolerance | -0.4mm to 0 |
| rmin | 2.1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 10200 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
