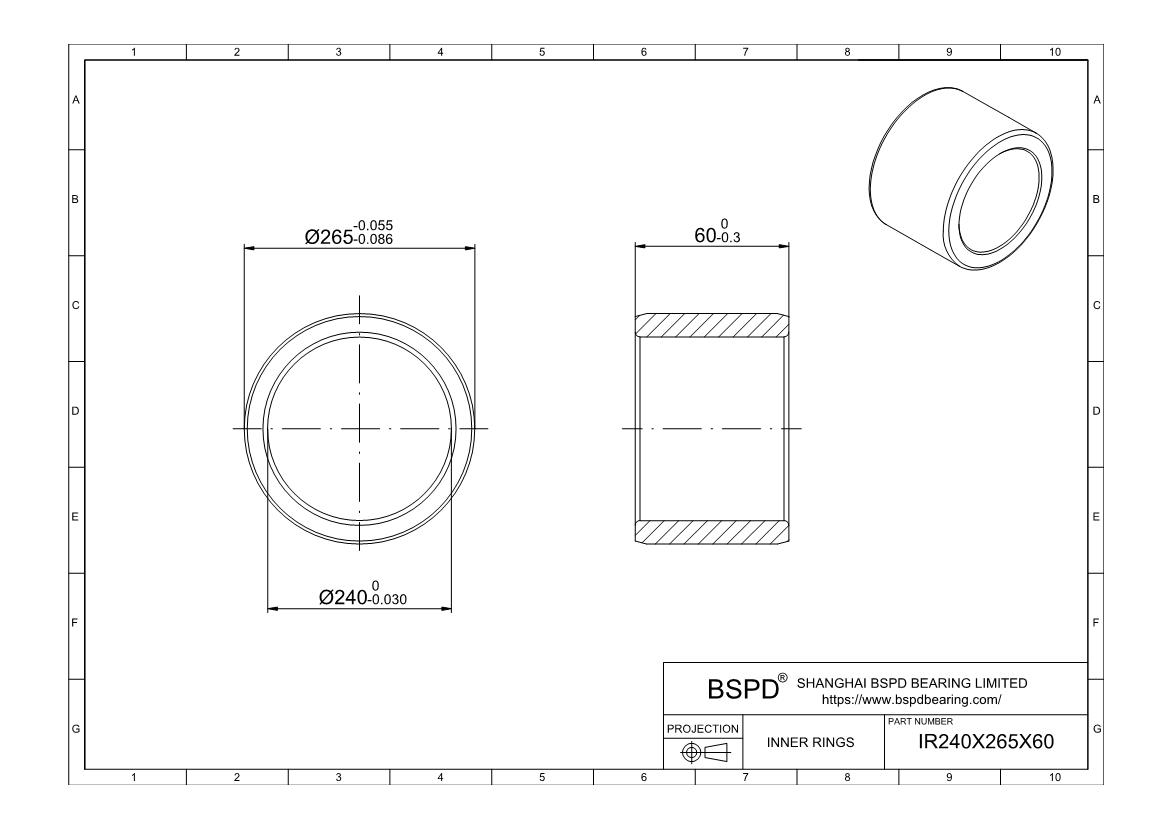

IR240X265X60
Inner Rings
Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 265 mm； Width (Thickness): 60 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR240X265X60-XL |
| For Shaft Diameter | 240 mm |
| Bore Dia (d) | 240 mm |
| Bore Dia Tolerance | -0.03mm to 0 |
| Outer Dia | 265 mm |
| Outer Dia Tolerance | -0.086mm to -0.055mm |
| Width (B) | 60 mm |
| Width Tolerance | -0.3mm to 0 |
| rmin | 2 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 4600 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR240X265X60 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
