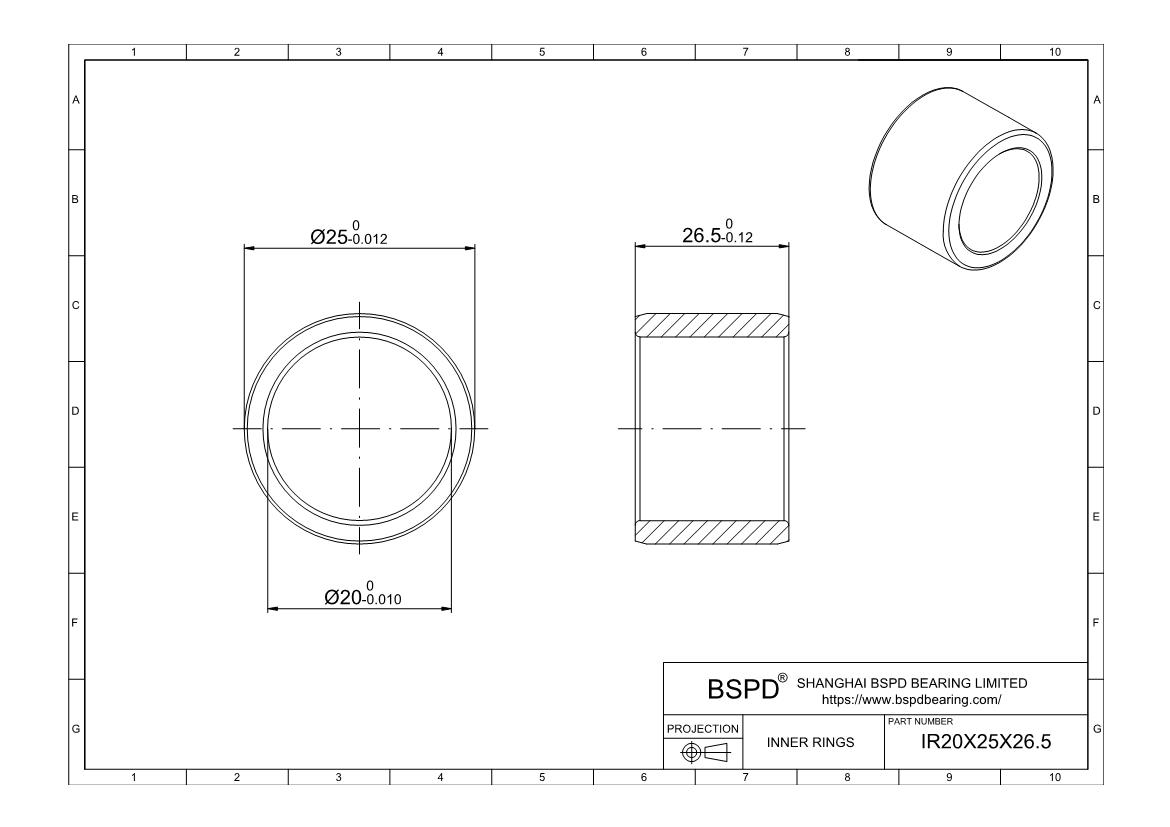

IR20X25X26.5
Inner Rings
Dimensions: Bore (Inner) Diameter: 20 mm； Outer Diameter: 25 mm； Width (Thickness): 26.5 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR20X25X26.5-XL |
| For Shaft Diameter | 20 mm |
| Bore Dia (d) | 20 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 25 mm |
| Outer Dia Tolerance | -0.012mm to 0 |
| Width (B) | 26.5 mm |
| Width Tolerance | -0.12mm to 0 |
| rmin | 0.3 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 38 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR20X25X26.5 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
