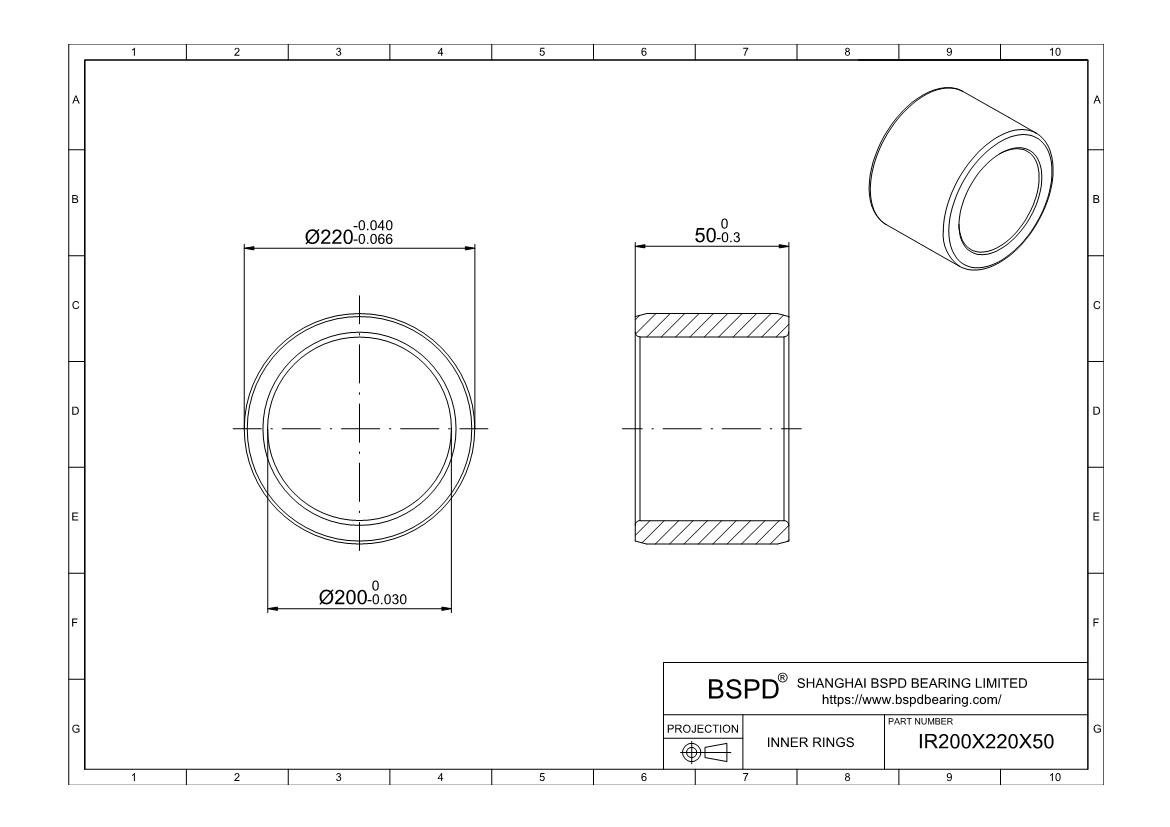

IR200X220X50
Inner Rings
Dimensions: Bore (Inner) Diameter: 200 mm； Outer Diameter: 220 mm； Width (Thickness): 50 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR200X220X50-XL |
| For Shaft Diameter | 200 mm |
| Bore Dia (d) | 200 mm |
| Bore Dia Tolerance | -0.03mm to 0 |
| Outer Dia | 220 mm |
| Outer Dia Tolerance | -0.066mm to -0.040mm |
| Width (B) | 50 mm |
| Width Tolerance | -0.3mm to 0 |
| rmin | 1.5 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 2518 |
Print PDF
Request a 3D CAD Model
