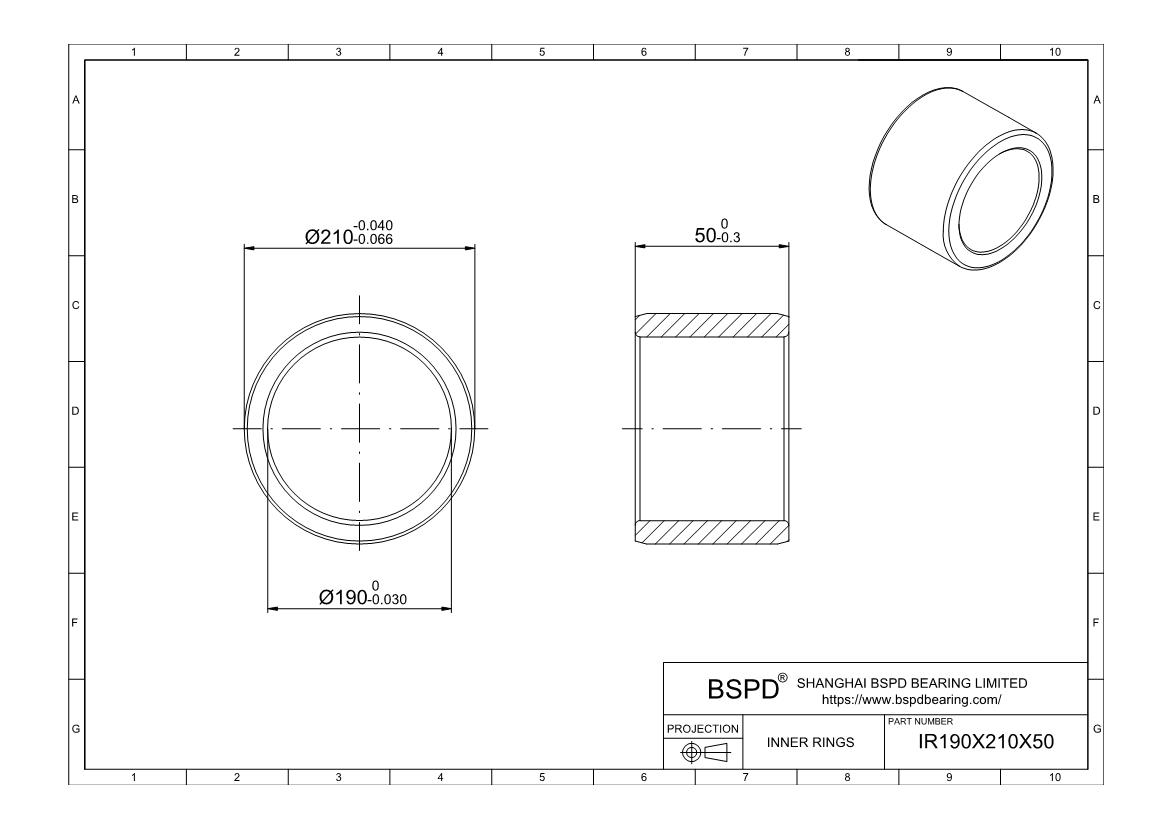

IR190X210X50
Inner Rings
Dimensions: Bore (Inner) Diameter: 190 mm； Outer Diameter: 210 mm； Width (Thickness): 50 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR190X210X50-XL |
| For Shaft Diameter | 190 mm |
| Bore Dia (d) | 190 mm |
| Bore Dia Tolerance | -0.03mm to 0 |
| Outer Dia | 210 mm |
| Outer Dia Tolerance | -0.066mm to -0.040mm |
| Width (B) | 50 mm |
| Width Tolerance | -0.3mm to 0 |
| rmin | 1.5 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 2410 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR190X210X50 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
