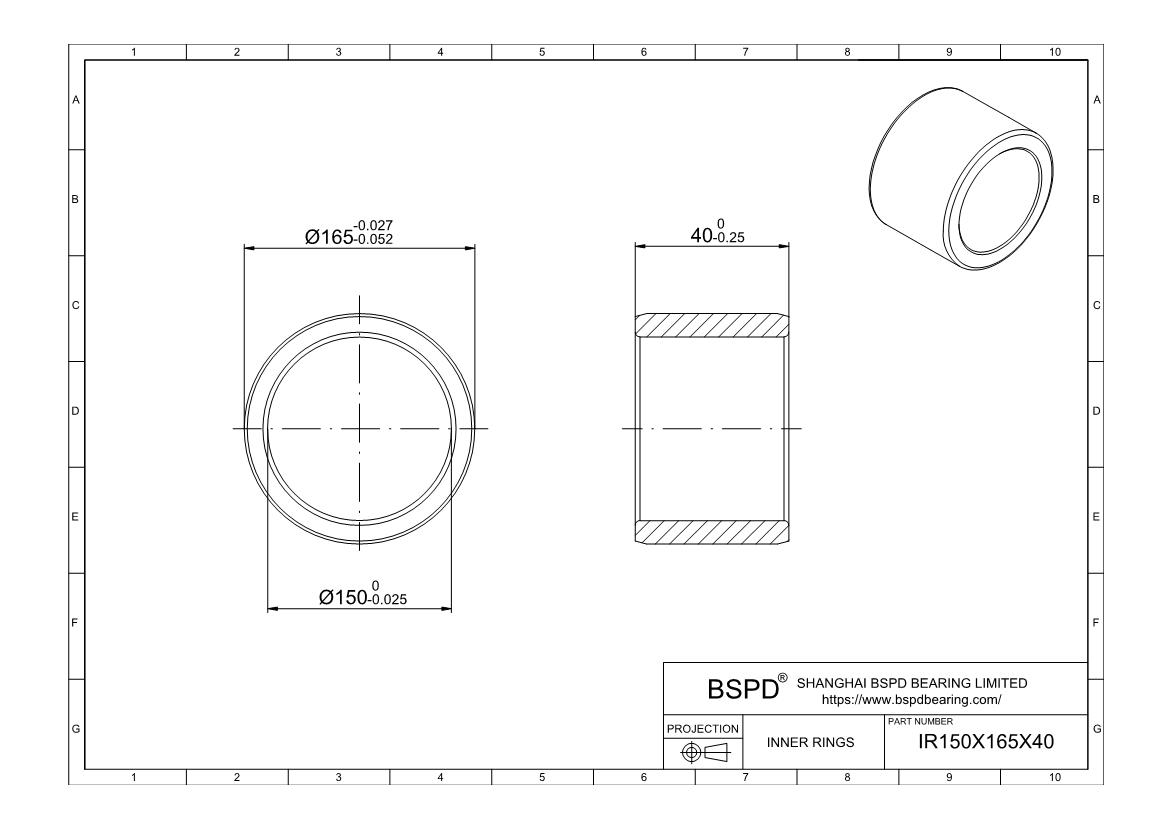

IR150X165X40
Inner Rings
Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 165 mm； Width (Thickness): 40 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR150X165X40-XL |
| For Shaft Diameter | 150 mm |
| Bore Dia (d) | 150 mm |
| Bore Dia Tolerance | -0.025mm to 0 |
| Outer Dia | 165 mm |
| Outer Dia Tolerance | -0.052mm to -0.027mm |
| Width (B) | 40 mm |
| Width Tolerance | -0.25mm to 0 |
| rmin | 1.1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 1122 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR150X165X40 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
