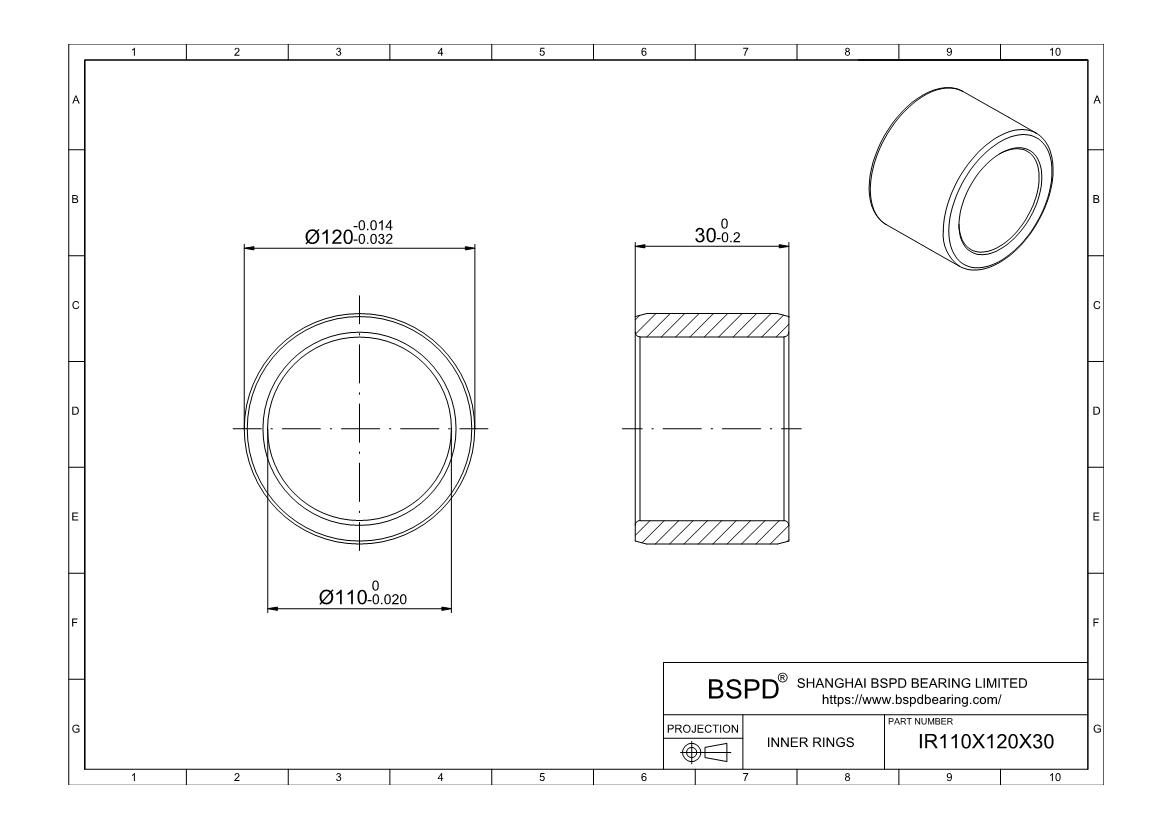

IR110X120X30
Inner Rings
Dimensions: Bore (Inner) Diameter: 110 mm； Outer Diameter: 120 mm； Width (Thickness): 30 mm;
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Metric |
| Part Number | IR110X120X30-XL |
| For Shaft Diameter | 110 mm |
| Bore Dia (d) | 110 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 120 mm |
| Outer Dia Tolerance | -0.032mm to -0.014mm |
| Width (B) | 30 mm |
| Width Tolerance | -0.2mm to 0 |
| rmin | 1 mm |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 409 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings IR110X120X30 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
