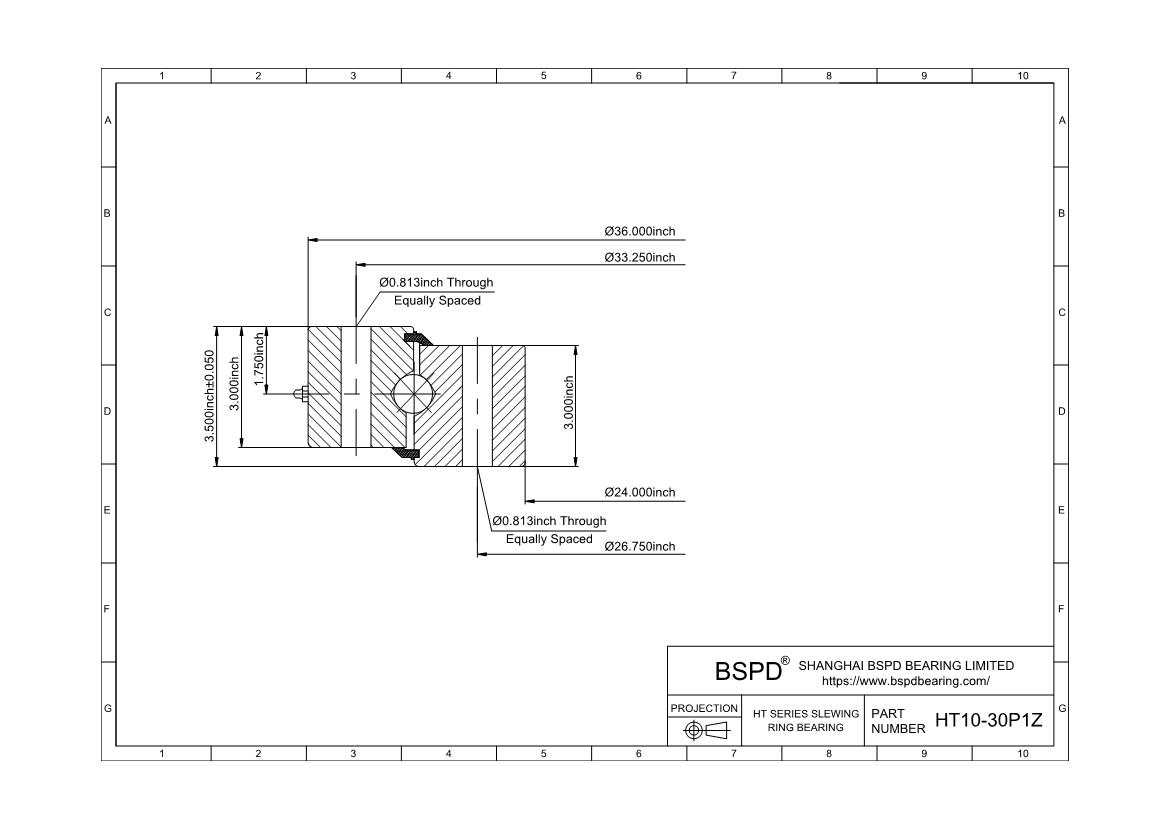

HT10-30P1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 24.0"； Outer Diameter: 36.0"； Width (Thickness): ;
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | HT10-30P1Z |
| Maximum Allowable Gear Tooth Load (Fz) | - |
| Moment Load Rating (Crm) | 340000ft-lbs | 1517.857KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 36" | 914.4mm |
| Inside Diameter of Inner Ring (di) | 24" | 609.6mm |
| Internal Diameter on Outer Ring (Di) | - |
| External Diameter on Inner Ring (do) | - |
| Approximate Weight (lbs) | 447lbs | 202.755KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 33.25" | 844.55mm |
| Number Holes in Outer Ring (no) | 24 |
| Bolt Circle in Inner Ring (Li) | 26.75" | 679.45mm |
| Number Holes in Inner Ring (ni) | 30 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Pitch Diameter (D2) | - |
| Diametral Pitch (Pd) | - |
| Number of Teeth (z2) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
