HS6-43E1Z
Kaydon Slewing Bearings

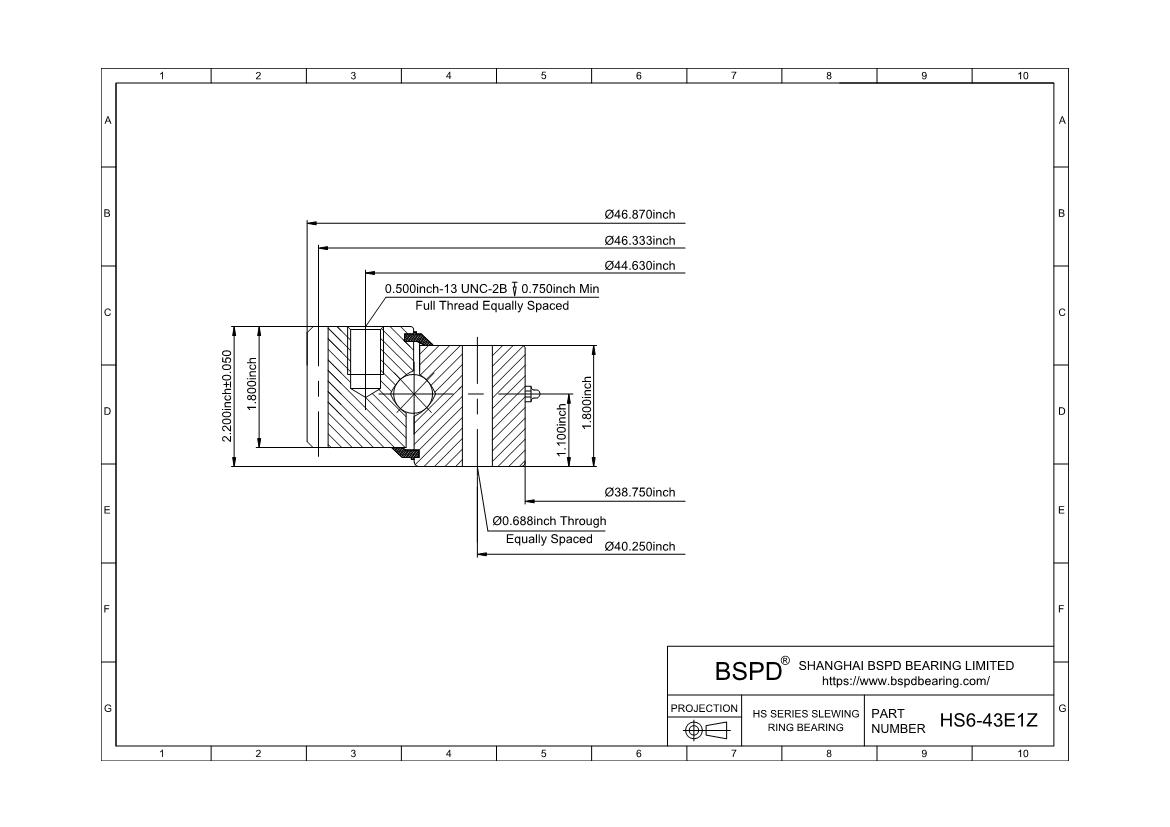

Dimensions: Bore (Inner) Diameter: 38.75"； Outer Diameter: 46.87"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-43E1Z |
| Moment Load Rating (Crm) | 139,900ft-lbs | 624.554KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 6,910lbs | 30.848KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 46.870" | 1190.5mm |
| Inside Diameter of Inner Ring (di) | 38.750" | 984.25mm |
| Approximate Weight (lb) | 237lbs | 107.501KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 44.630" | 1133.6mm |
| Number Holes in Outer Ring (no) | 32 |
| Bolt Circle in Inner Ring (Li) | 40.250" | 1022.35mm |
| Number Holes in Inner Ring (ni) | 24 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 46.333" | 1176.86mm |
| Diametral Pitch (Pd) | 3 |
| Number of Gear Teeth (z2) | 139 |
| Mating Pinions | 39200003 39200004 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-43E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
