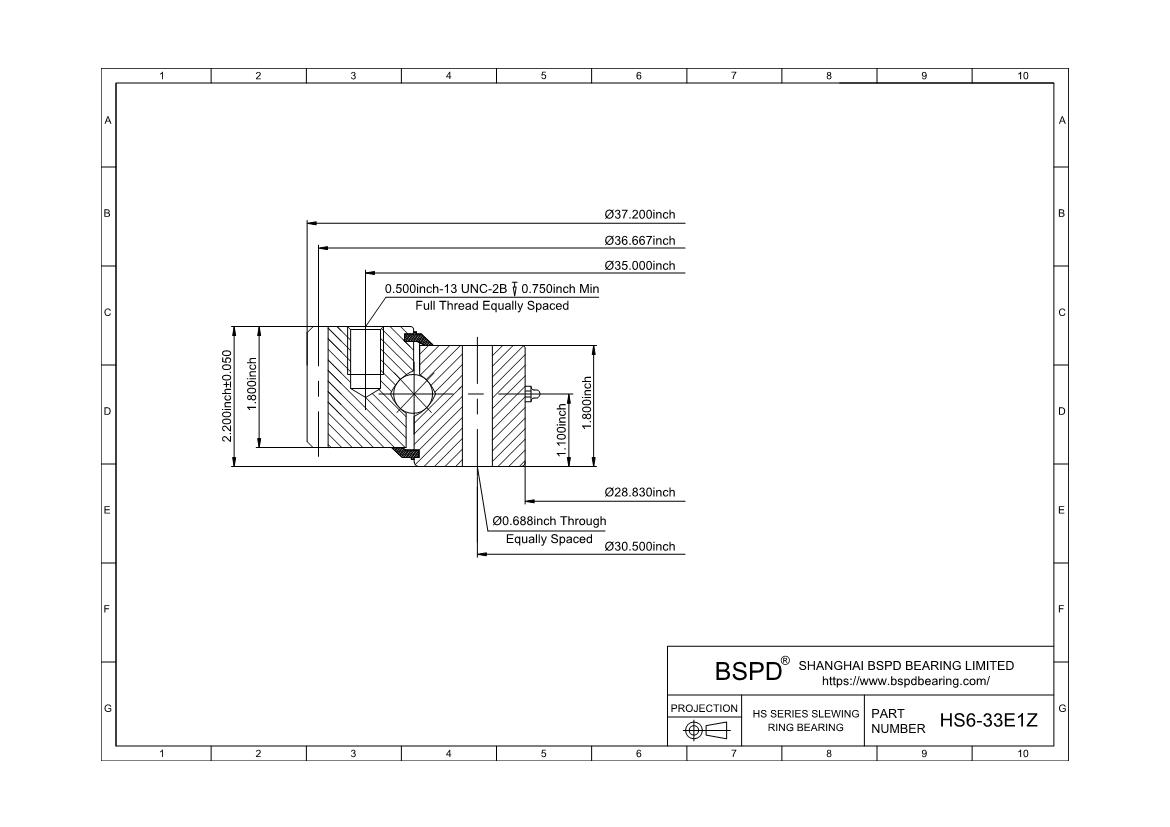

HS6-33E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 28.83"； Outer Diameter: 37.2"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-33E1Z |
| Moment Load Rating (Crm) | 128,000ft-lbs | 571.429KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 6,817lbs | 30.433KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 37.200" | 944.88mm |
| Inside Diameter of Inner Ring (di) | 28.830" | 732.28mm |
| Approximate Weight (lb) | 188lbs | 85.275KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 35.000" | 889mm |
| Number Holes in Outer Ring (no) | 28 |
| Bolt Circle in Inner Ring (Li) | 30.500" | 774.7mm |
| Number Holes in Inner Ring (ni) | 20 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 36.667" | 931.34mm |
| Diametral Pitch (Pd) | 3 |
| Number of Gear Teeth (z2) | 110 |
| Mating Pinions | 39200003 39200004 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-33E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
