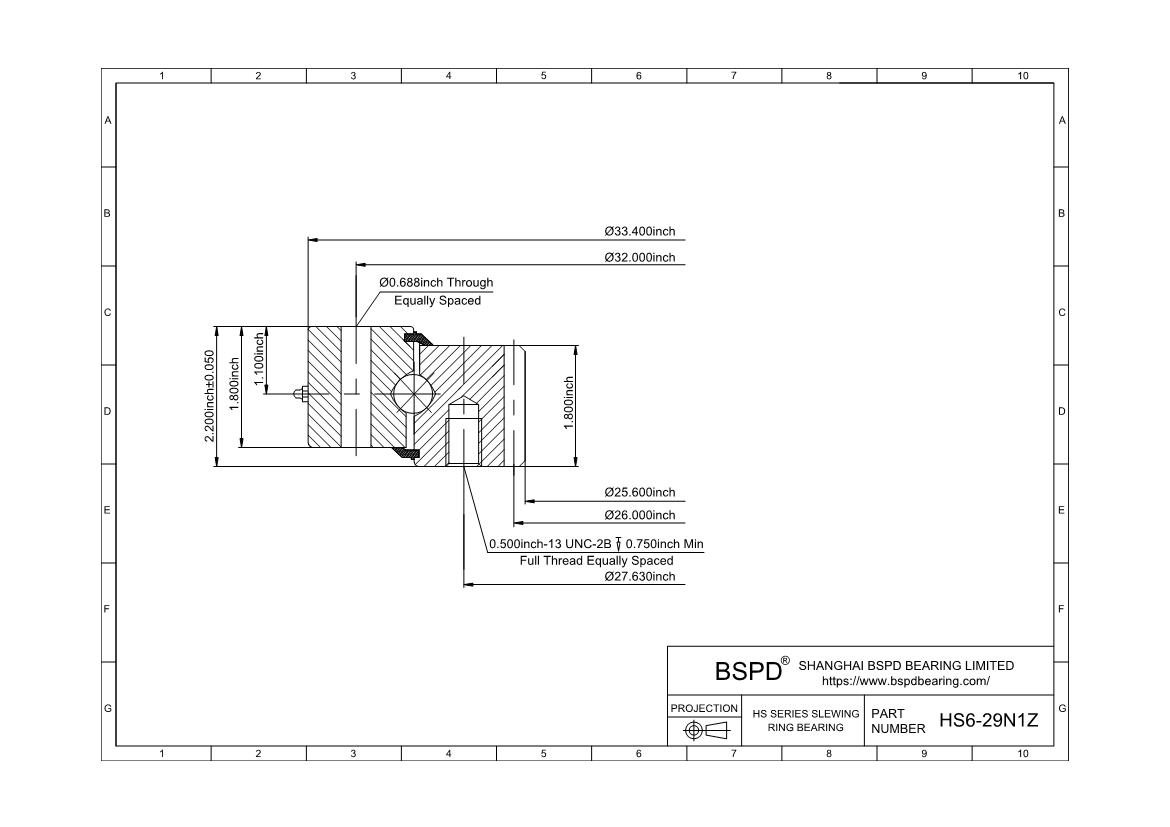

HS6-29N1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 25.6"； Outer Diameter: 33.4"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-29N1Z |
| Moment Load Rating (Crm) | 111,900ft-lbs | 499.554KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 5,634lbs | 25.152KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 33.400" | 848.36mm |
| Inside Diameter of Inner Ring (di) | 25.600" | 650.24mm |
| Approximate Weight (lb) | 171lbs | 77.564KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 32.000" | 812.8mm |
| Number Holes in Outer Ring (no) | 15 |
| Bolt Circle in Inner Ring (Li) | 27.630" | 701.8mm |
| Number Holes in Inner Ring (ni) | 28 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 26.000" | 660.4mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 104 |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-29N1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
