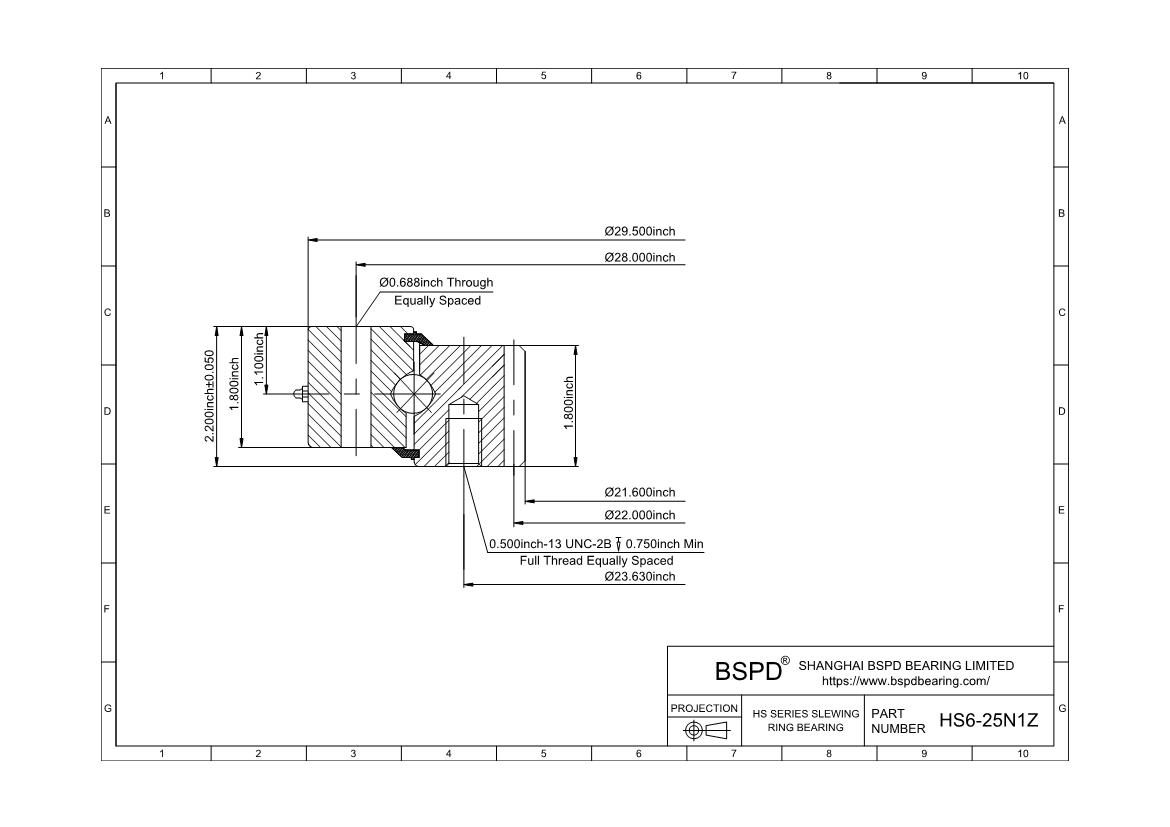

HS6-25N1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 21.6"； Outer Diameter: 29.5"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-25N1Z |
| Moment Load Rating (Crm) | 91,800ft-lbs | 409.821KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 5719lbs | 25.531KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 29.500" | 749.3mm |
| Inside Diameter of Inner Ring (di) | 21.600" | 548.64mm |
| Approximate Weight (lb) | 148lbs | 67.131KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 28.000" | 711.2mm |
| Number Holes in Outer Ring (no) | 15 |
| Bolt Circle in Inner Ring (Li) | 23.630" | 600.2mm |
| Number Holes in Inner Ring (ni) | 24 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 22.000" | 558.8mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 88 |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-25N1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
