HS6-21E1Z
Kaydon Slewing Bearings

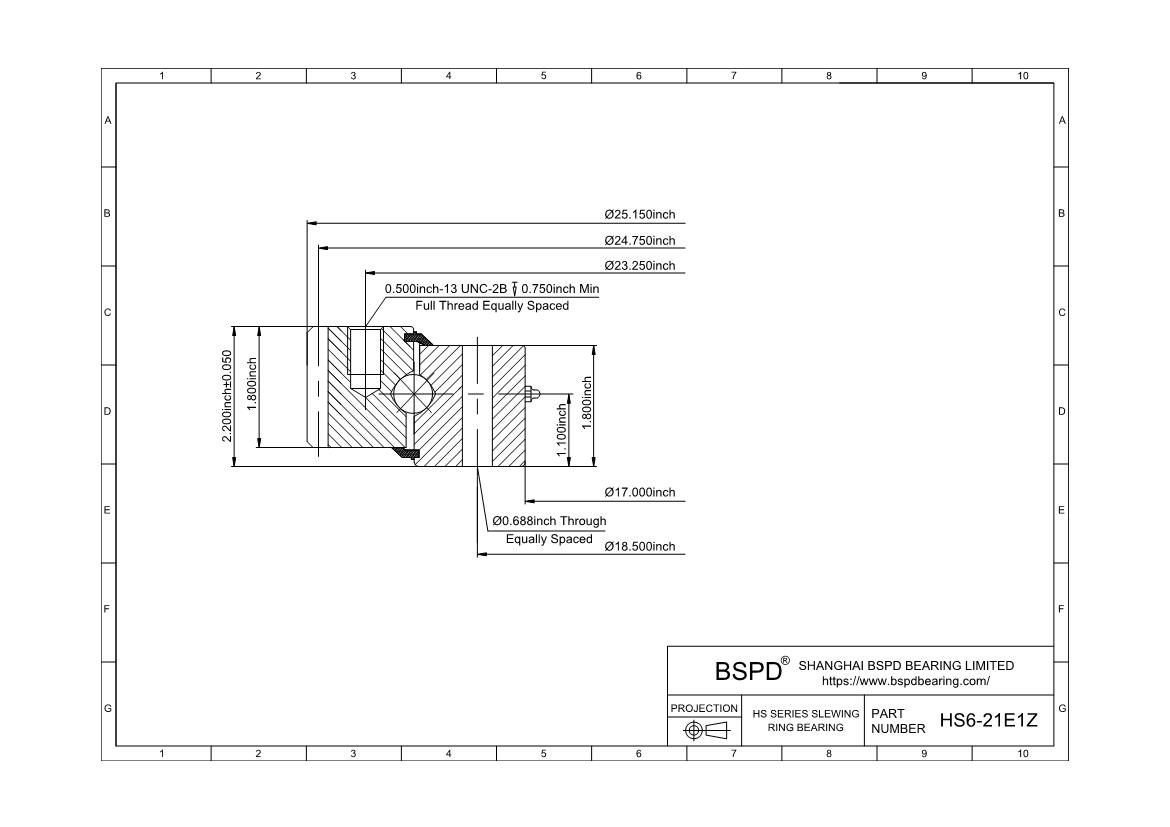

Dimensions: Bore (Inner) Diameter: 17.0"； Outer Diameter: 25.15"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-21E1Z |
| Moment Load Rating (Crm) | 72,700ft-lbs | 324.554KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 5,076lbs | 22.661KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 25.150" | 638.81mm |
| Inside Diameter of Inner Ring (di) | 17.000" | 431.8mm |
| Approximate Weight (lb) | 108lbs | 48.988KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 23.250" | 590.55mm |
| Number Holes in Outer Ring (no) | 18 |
| Bolt Circle in Inner Ring (Li) | 18.500" | 469.9mm |
| Number Holes in Inner Ring (ni) | 15 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 24.750" | 628.65mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 99 |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-21E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
