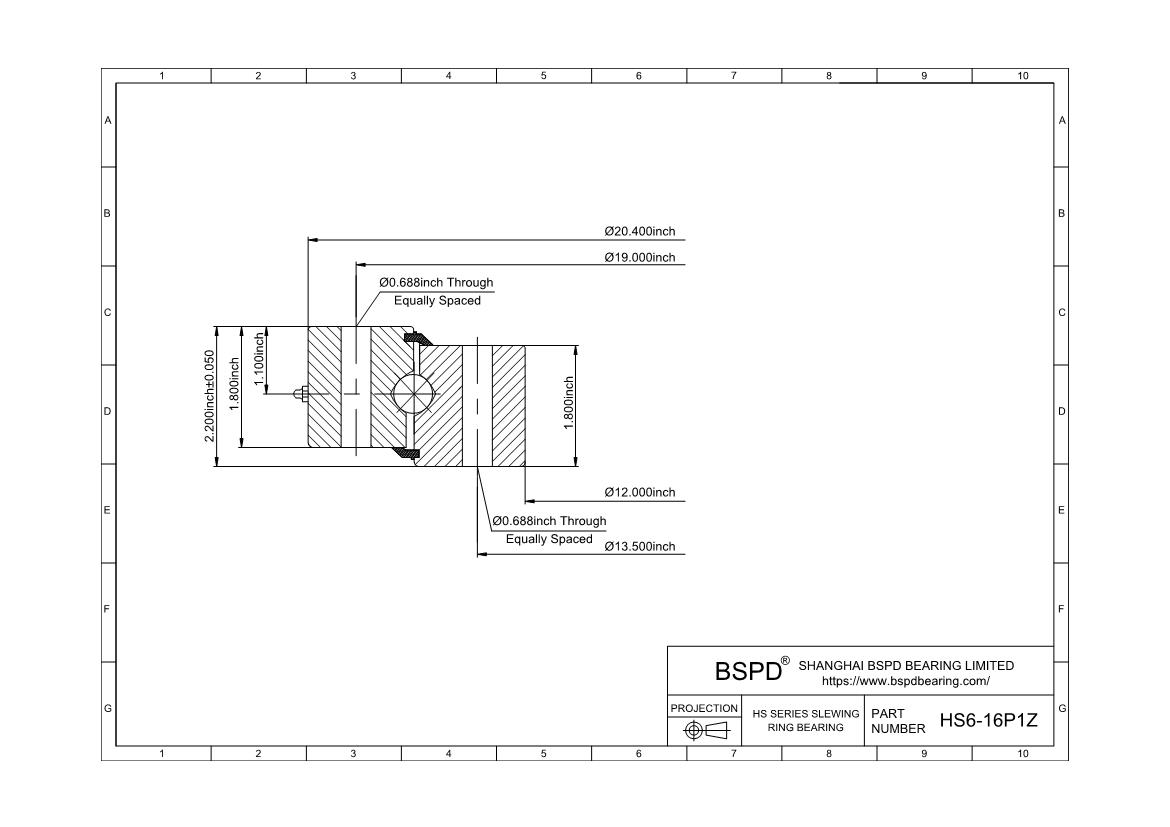

HS6-16P1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 12.0"； Outer Diameter: 20.4"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-16P1Z |
| Moment Load Rating (Crm) | 50,500ft-lbs | 225.446KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | - |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 20.400" | 518.16mm |
| Inside Diameter of Inner Ring (di) | 12.000" | 304.8mm |
| Approximate Weight (lb) | 103lbs | 46.72KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 19.000" | 482.6mm |
| Number Holes in Outer Ring (no) | 8 |
| Bolt Circle in Inner Ring (Li) | 13.500" | 342.9mm |
| Number Holes in Inner Ring (ni) | 12 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | - |
| Diametral Pitch (Pd) | - |
| Number of Gear Teeth (z2) | - |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-16P1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
