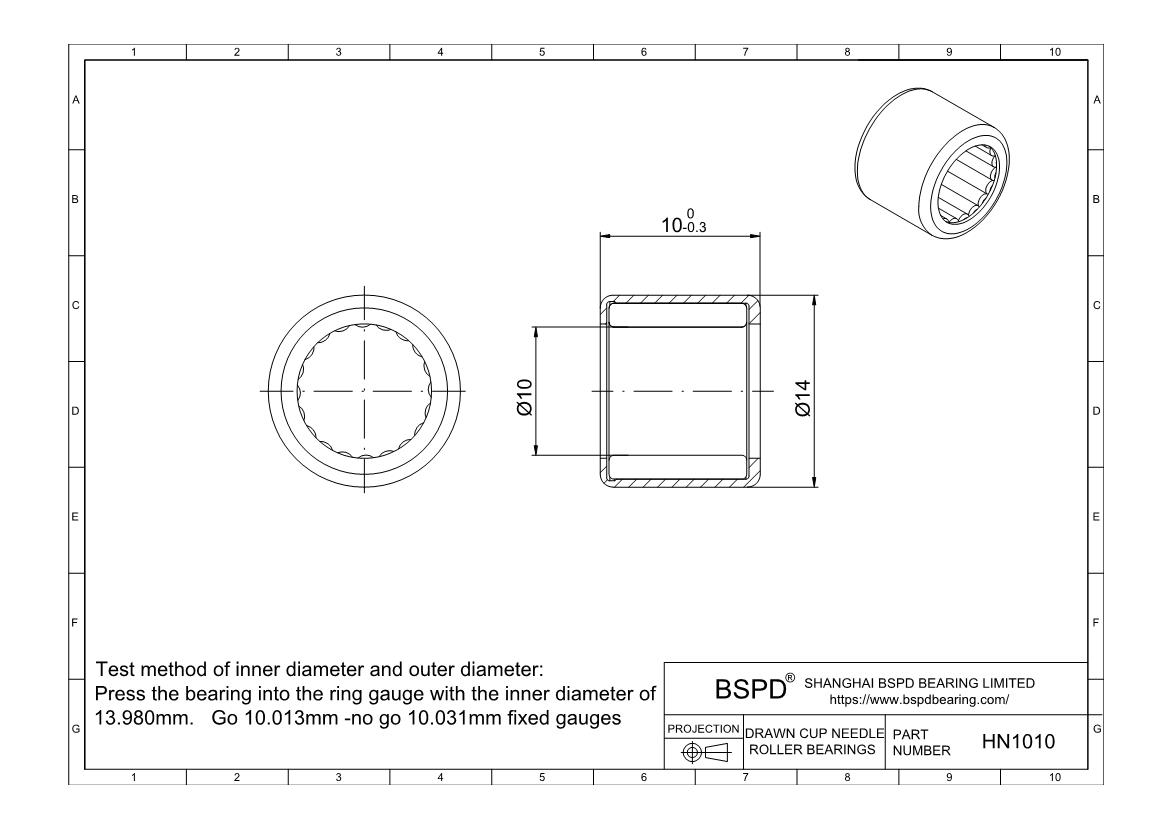

HN1010
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 10 mm； Outer Diameter: 14 mm； Width (Thickness): 10 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| System of Measurement | Metric |
| Seal Type | Open |
| Part Number | HN1010 |
| For Shaft Diameter | 10mm |
| Bore Dia (d) | 10mm |
| Bore Dia Tolerance | +13~+31"m |
| For Housing ID | 14mm |
| Outer Dia (D) | 14mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 10mm |
| Width Tolerance | -0.3mm to 0mm |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 6820N |
| Static Load Rating (Cor) (Newtons) | 11400N |
| Fatigue limit load(Cur) (Newtons) | 1270N |
| Max Speed (Grease) (RPM) | 18000 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 4.6 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings HN1010 ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
