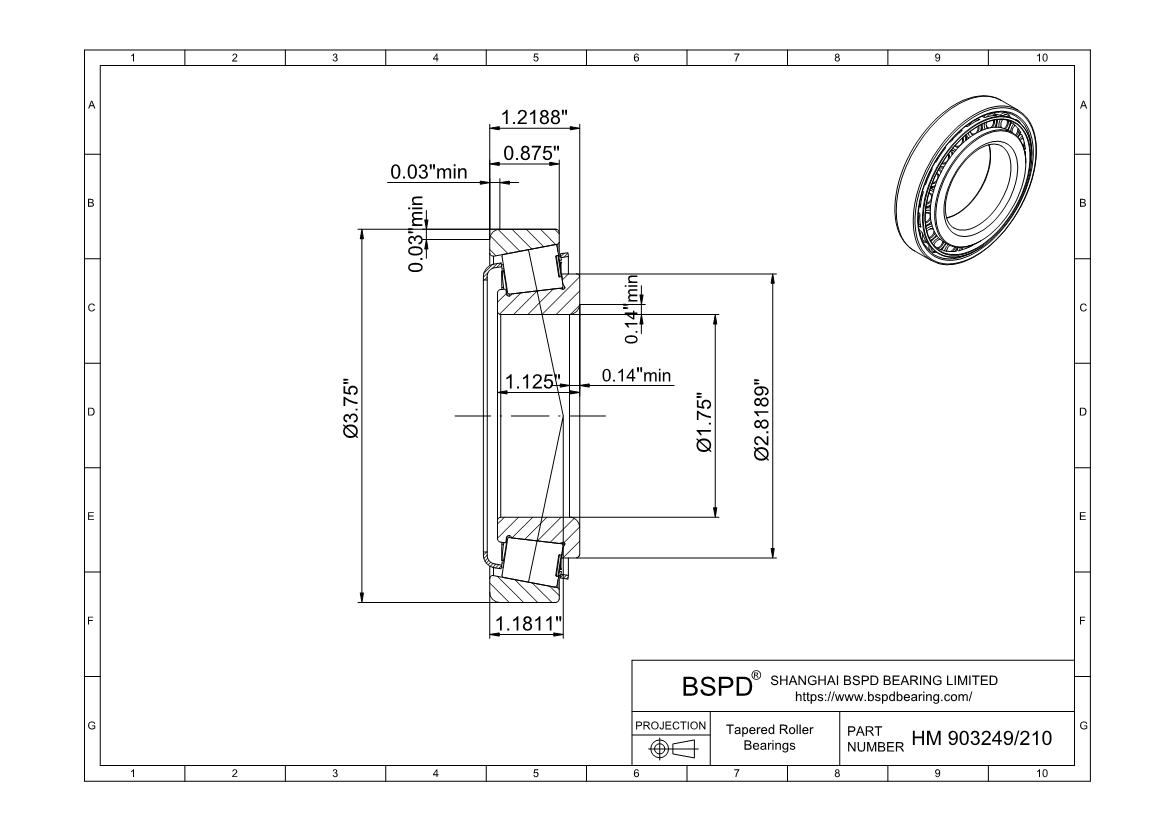

HM 903249/210
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.7500 "； Outer Diameter: 3.7500 "； Width (Thickness): 1.2188 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | HM 903249/210 |
| Bore diameter | 1.7500 " |
| Outside diameter | 3.7500 " |
| Total width | 1.2188 " |
| Shoulder diameter of inner ring | 2.8189 " |
| Widthof inner ring | 1.1250 " |
| Width of outer ring | 0.8750 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 0.8 |
| Distance side face to pressure point (a) | 30 |
| Basic dynamic load rating (Cr) | 124 |
| Basic static load rating (Cor) | 122 |
| Fatigue load limit (Pu) | 14 |
| Reference speed | 5300 r/min |
| Limiting speed | 7000 r/min |
| Mass | 1 kg |
| Limiting value (e) | 0.75 |
| Axial load factor (Y) | 0.8 |
| Axial load factor (Y0) | 0.45 |
| Maximum diameter of shaft abutment (da) | 53 mm |
| Minimum diameter of shaft abutment (db) | 58 mm |
| Minimum diameter of housing abutment (Da) | 71 mm |
| Maximum diameter of housing abutment (Da) | 89 mm |
| Minimum diameter of housing abutment (Db) | 90 mm |
| Minimum width of space required in housing on large side face (C | 4 mm |
| Minimum width of space required in housing on small side face (C | 8.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 0.8 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings HM 903249/210 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
