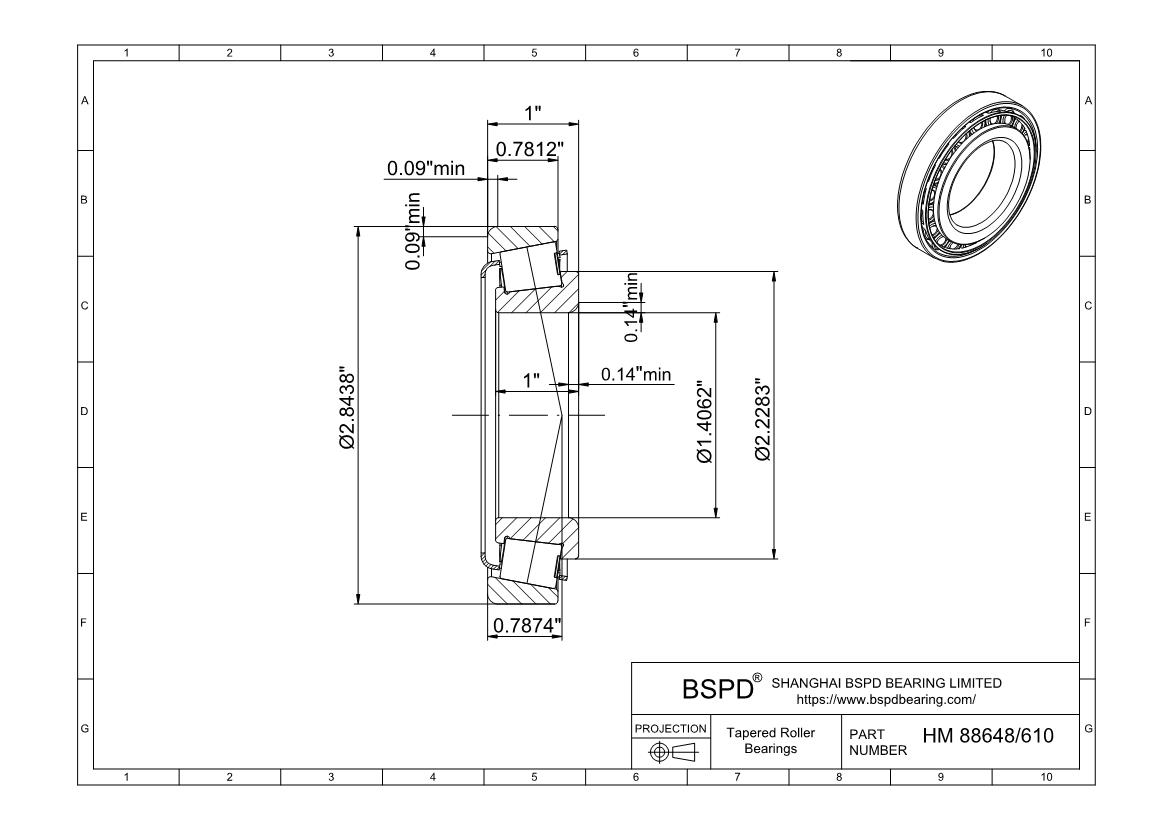

HM 88648/610
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.4062 "； Outer Diameter: 2.8438 "； Width (Thickness): 1.0000 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | HM 88648/610 |
| Bore diameter | 1.4062 " |
| Outside diameter | 2.8438 " |
| Total width | 1.0000 " |
| Shoulder diameter of inner ring | 2.2283 " |
| Widthof inner ring | 1.0000 " |
| Width of outer ring | 0.7812 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 2.3 |
| Distance side face to pressure point (a) | 20 |
| Basic dynamic load rating (Cr) | 83 |
| Basic static load rating (Cor) | 90 |
| Fatigue load limit (Pu) | 10 |
| Reference speed | 7500 r/min |
| Limiting speed | 9000 r/min |
| Mass | 0.49 kg |
| Limiting value (e) | 0.54 |
| Axial load factor (Y) | 1.1 |
| Axial load factor (Y0) | 0.6 |
| Maximum diameter of shaft abutment (da) | 42 mm |
| Minimum diameter of shaft abutment (db) | 48 mm |
| Minimum diameter of housing abutment (Da) | 57 mm |
| Maximum diameter of housing abutment (Da) | 63 mm |
| Minimum diameter of housing abutment (Db) | 68 mm |
| Minimum width of space required in housing on large side face (C | 5 mm |
| Minimum width of space required in housing on small side face (C | 5.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 2.3 mm |
