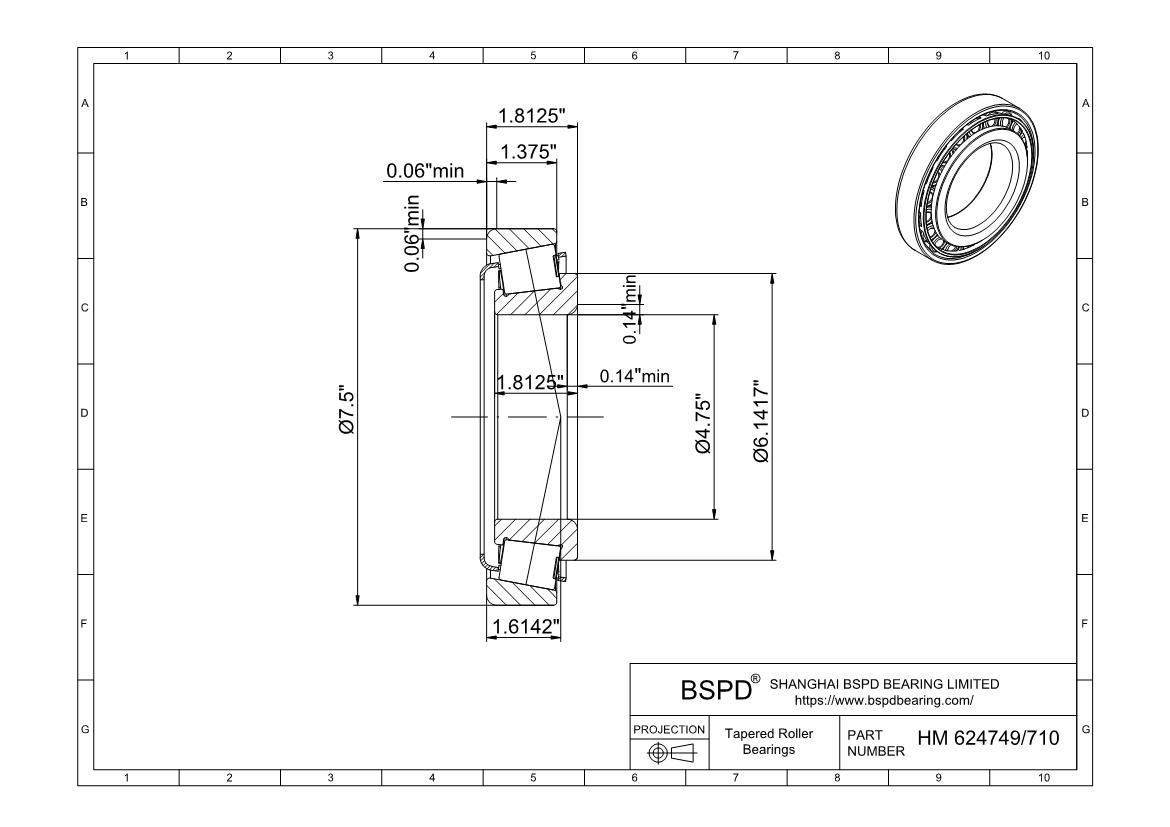

HM 624749/710
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 4.7500 "； Outer Diameter: 7.5000 "； Width (Thickness): 1.8125 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | HM 624749/710 |
| Bore diameter | 4.7500 " |
| Outside diameter | 7.5000 " |
| Total width | 1.8125 " |
| Shoulder diameter of inner ring | 6.1417 " |
| Widthof inner ring | 1.8125 " |
| Width of outer ring | 1.3750 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1.5 |
| Distance side face to pressure point (a) | 41 |
| Basic dynamic load rating (Cr) | 388 |
| Basic static load rating (Cor) | 540 |
| Fatigue load limit (Pu) | 56 |
| Reference speed | 2600 r/min |
| Limiting speed | 3200 r/min |
| Mass | 4.85 kg |
| Limiting value (e) | 0.43 |
| Axial load factor (Y) | 1.4 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 135 mm |
| Minimum diameter of shaft abutment (db) | 136 mm |
| Minimum diameter of housing abutment (Da) | 167 mm |
| Maximum diameter of housing abutment (Da) | 180 mm |
| Minimum diameter of housing abutment (Db) | 182 mm |
| Minimum width of space required in housing on large side face (C | 8 mm |
| Minimum width of space required in housing on small side face (C | 11 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 1.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings HM 624749/710 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
