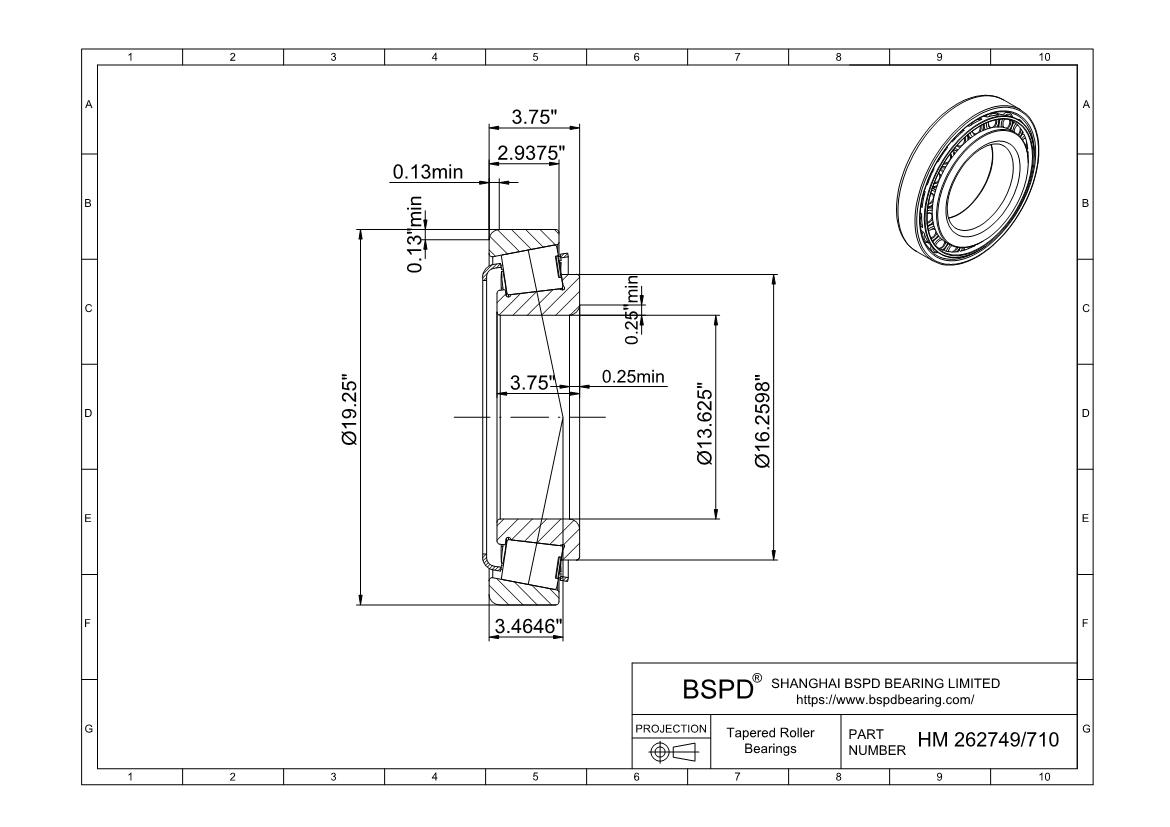

HM 262749/710
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 13.6250 "； Outer Diameter: 19.2500 "； Width (Thickness): 3.7500 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | HM 262749/710 |
| Bore diameter | 13.6250 " |
| Outside diameter | 19.2500 " |
| Total width | 3.7500 " |
| Shoulder diameter of inner ring | 16.2599 " |
| Widthof inner ring | 3.7500 " |
| Width of outer ring | 2.9375 " |
| Chamfer minimum dimension of inner ring (r1,2) | 6.4 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 88 |
| Basic dynamic load rating (Cr) | 1533 |
| Basic static load rating (Cor) | 3150 |
| Fatigue load limit (Pu) | 255 |
| Reference speed | 850 r/min |
| Limiting speed | 1100 r/min |
| Mass | 55 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y) | 1.8 |
| Axial load factor (Y0) | 1 |
| Maximum diameter of shaft abutment (da) | 379 mm |
| Minimum diameter of shaft abutment (db) | 378 mm |
| Minimum diameter of housing abutment (Da) | 442 mm |
| Maximum diameter of housing abutment (Da) | 472 mm |
| Minimum diameter of housing abutment (Db) | 467 mm |
| Minimum width of space required in housing on large side face (C | 8 mm |
| Minimum width of space required in housing on small side face (C | 21 mm |
| Maximum Radius of shaft fillet (ra) | 6 mm |
| Maximum Radius of housing fillet (rb) | 3.1 mm |
