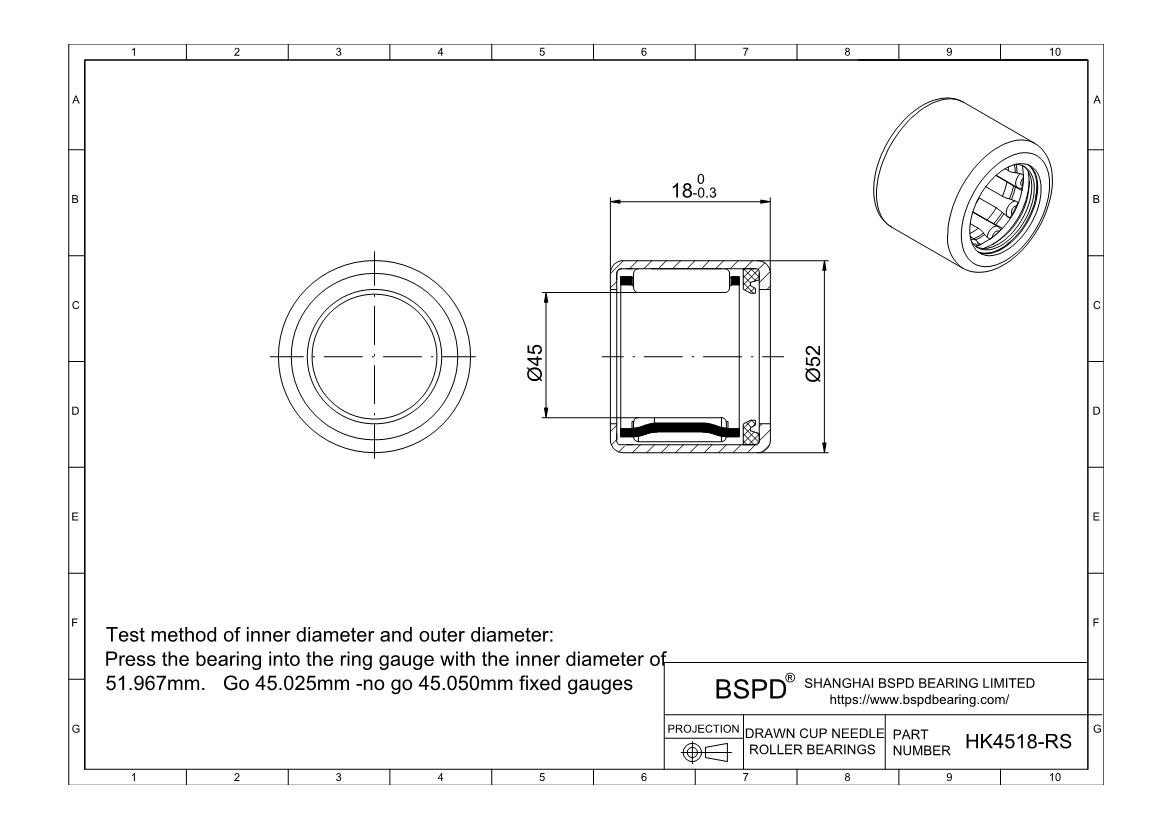

HK4518-RS
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 45 mm； Outer Diameter: 52 mm； Width (Thickness): 18 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| System of Measurement | Metric |
| Seal Type | Single seal |
| Part Number | HK4518-RS |
| For Shaft Diameter | 45mm |
| Bore Dia (d) | 45mm |
| Bore Dia Tolerance | +25?m~+50?m |
| For Housing ID | 52mm |
| Outer Dia (D) | 52mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 18mm |
| Width Tolerance | -0.3mm to 0mm |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 21300 N |
| Static Load Rating (Cor) (Newtons) | 43000 N |
| Fatigue limit load(Cur) (Newtons) | 5700 N |
| Max Speed (Grease) (RPM) | 3550 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 50 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings HK4518-RS ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
