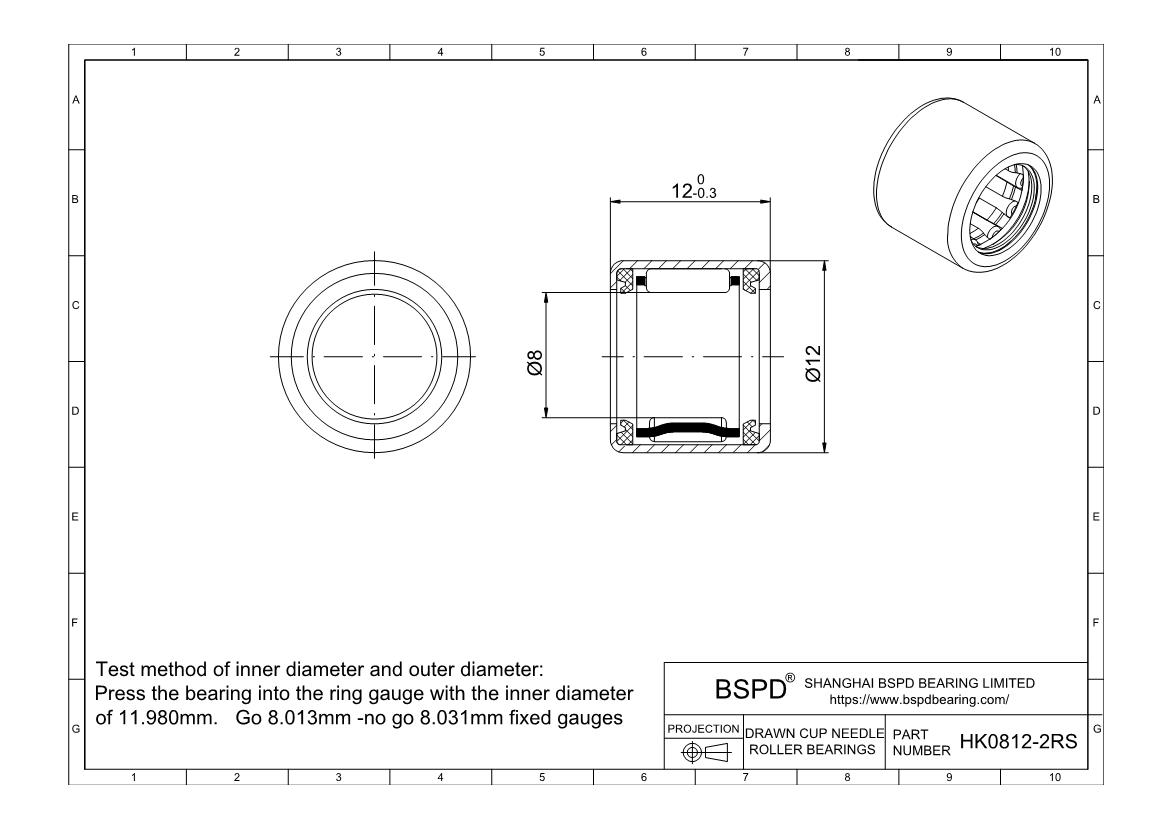

HK0812-2RS
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 8 mm； Outer Diameter: 12 mm； Width (Thickness): 12 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| System of Measurement | Metric |
| Seal Type | Double seals |
| Part Number | HK0812-2RS |
| For Shaft Diameter | 8mm |
| Bore Dia (d) | 8mm |
| Bore Dia Tolerance | +13~+31"m |
| For Housing ID | 12mm |
| Outer Dia (D) | 12mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 12mm |
| Width Tolerance | -0.3mm to 0mm |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 2750 N |
| Static Load Rating (Cor) (Newtons) | 2600 N |
| Fatigue limit load(Cur) (Newtons) | 290 N |
| Max Speed (Grease) (RPM) | 17700 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 3.3 |
Print PDF
Request a 3D CAD Model
