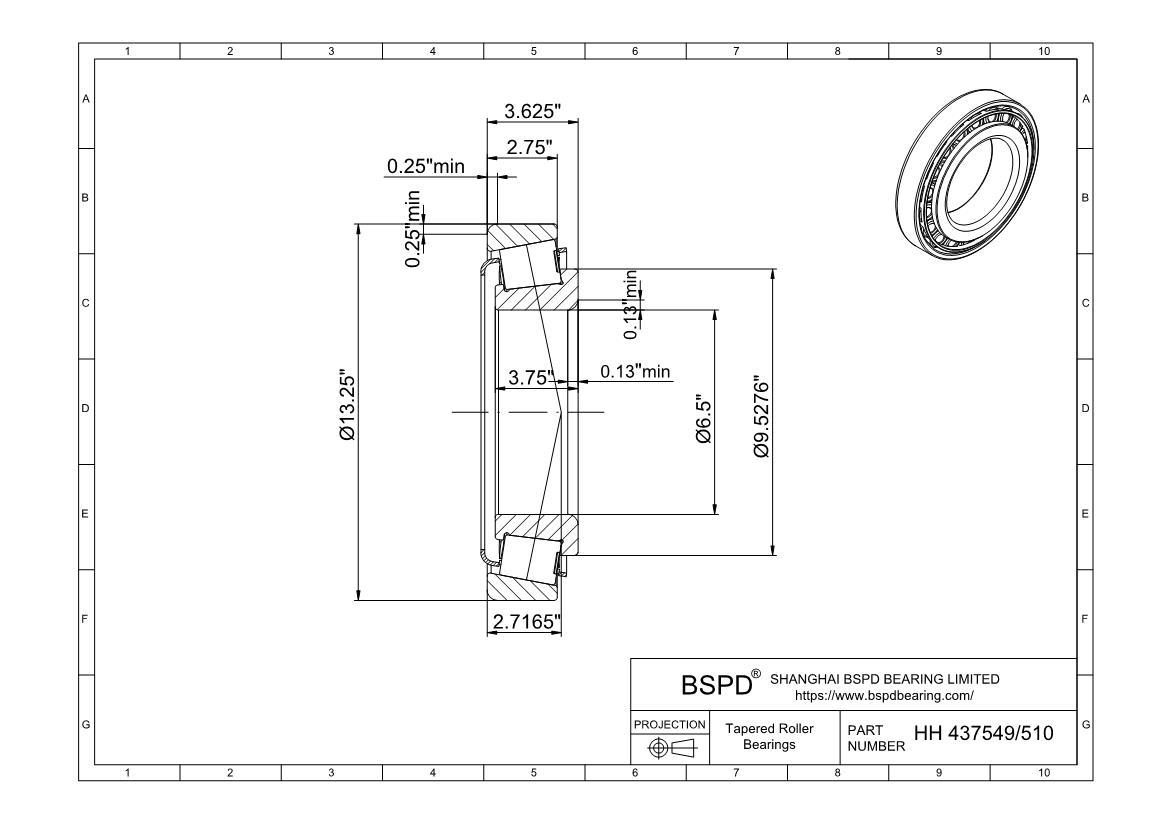

HH 437549/510
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 6.5000 "； Outer Diameter: 13.2500 "； Width (Thickness): 3.6250 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | HH 437549/510 |
| Bore diameter | 6.5000 " |
| Outside diameter | 13.2500 " |
| Total width | 3.6250 " |
| Shoulder diameter of inner ring | 9.5276 " |
| Widthof inner ring | 3.7500 " |
| Width of outer ring | 2.7500 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.3 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 6.4 |
| Distance side face to pressure point (a) | 69 |
| Basic dynamic load rating (Cr) | 1198 |
| Basic static load rating (Cor) | 1700 |
| Fatigue load limit (Pu) | 156 |
| Reference speed | 1400 r/min |
| Limiting speed | 1900 r/min |
| Mass | 37 kg |
| Limiting value (e) | 0.37 |
| Axial load factor (Y) | 1.6 |
| Axial load factor (Y0) | 0.9 |
| Maximum diameter of shaft abutment (da) | 203 mm |
| Minimum diameter of shaft abutment (db) | 182 mm |
| Minimum diameter of housing abutment (Da) | 280 mm |
| Maximum diameter of housing abutment (Da) | 315 mm |
| Minimum diameter of housing abutment (Db) | 308 mm |
| Minimum width of space required in housing on large side face (C | 14 mm |
| Minimum width of space required in housing on small side face (C | 22 mm |
| Maximum Radius of shaft fillet (ra) | 3.3 mm |
| Maximum Radius of housing fillet (rb) | 6.4 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
