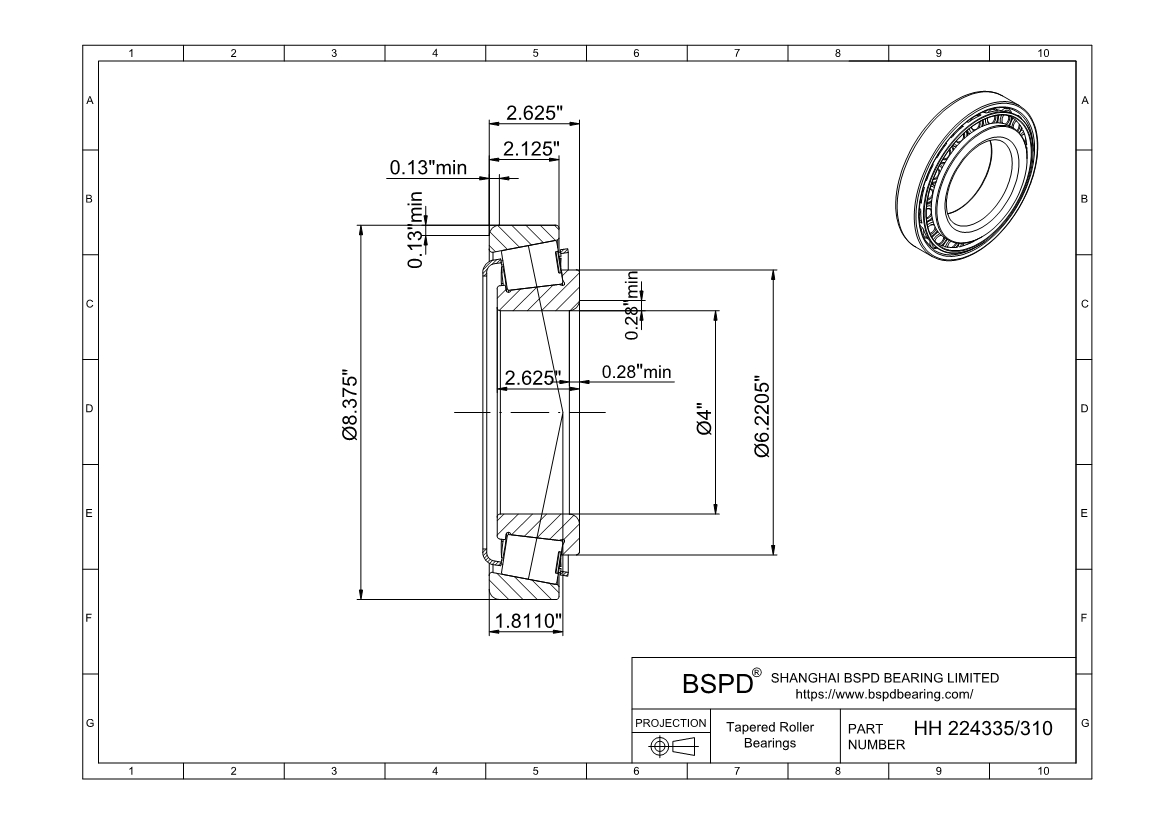

HH 224335/310
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 4.0000 "； Outer Diameter: 8.3750 "； Width (Thickness): 2.6250 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | HH 224335/310 |
| Bore diameter | 4.0000 " |
| Outside diameter | 8.3750 " |
| Total width | 2.6250 " |
| Shoulder diameter of inner ring | 6.2205 " |
| Widthof inner ring | 2.6250 " |
| Width of outer ring | 2.1250 " |
| Chamfer minimum dimension of inner ring (r1,2) | 7 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 46 |
| Basic dynamic load rating (Cr) | 619 |
| Basic static load rating (Cor) | 830 |
| Fatigue load limit (Pu) | 88 |
| Reference speed | 2200 r/min |
| Limiting speed | 3000 r/min |
| Mass | 11 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y) | 1.8 |
| Axial load factor (Y0) | 1 |
| Maximum diameter of shaft abutment (da) | 132 mm |
| Minimum diameter of shaft abutment (db) | 124 mm |
| Minimum diameter of housing abutment (Da) | 184 mm |
| Maximum diameter of housing abutment (Da) | 199 mm |
| Minimum diameter of housing abutment (Db) | 202 mm |
| Minimum width of space required in housing on large side face (C | 10 mm |
| Minimum width of space required in housing on small side face (C | 12.5 mm |
| Maximum Radius of shaft fillet (ra) | 7 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings HH 224335/310 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
