HFL0615
One-Way Needle-Roller Bearing Clutches

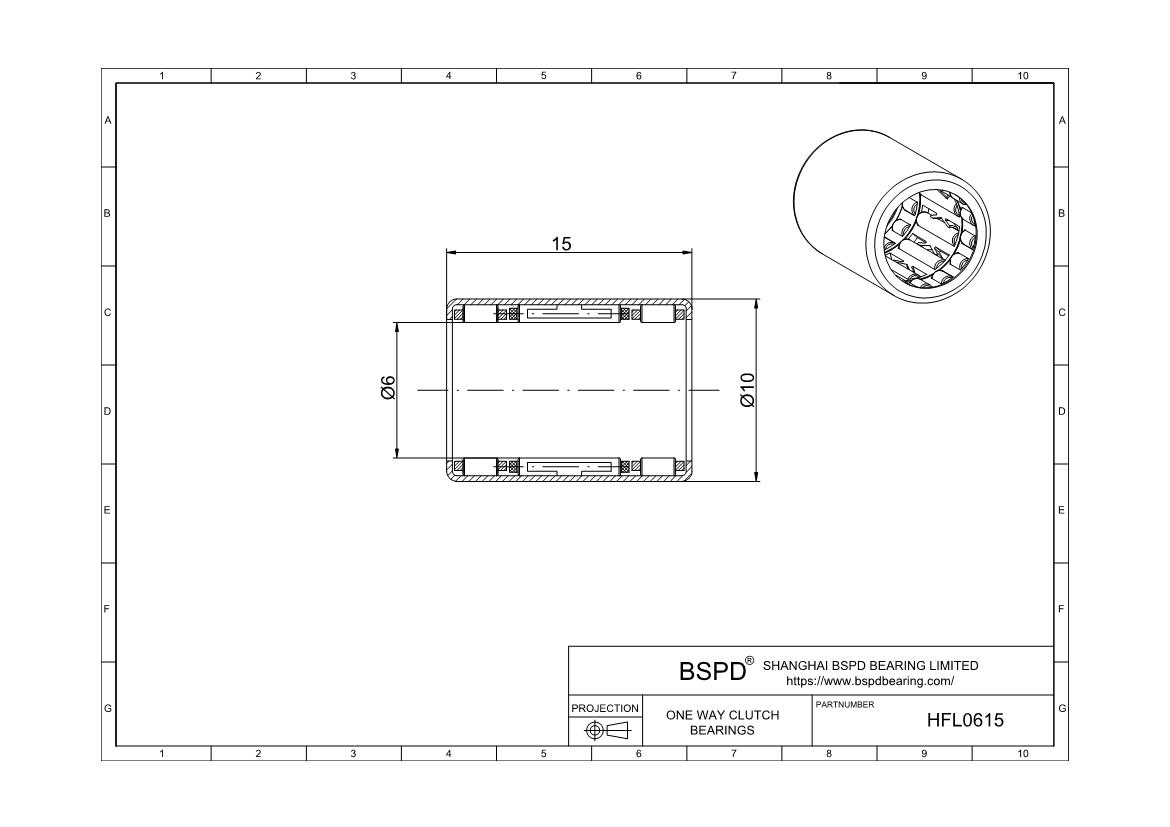

Dimensions: Bore (Inner) Diameter: 6 mm； Outer Diameter: 10 mm； Width (Thickness): 15 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Triple Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | HFL0615 |
| For Shaft Diameter | 6 mm |
| Bore Dia (d) | 6 mm |
| For Housing ID | 10 mm |
| Outer Dia (D) | 10 mm |
| Width (B) | 15 mm |
| Ring Material | Steel |
| Needle Material | Steel |
| Cage Material | Steel |
| Spring Material | Steel |
| Knurledy | No |
| Md per | 1,76 Nm |
| nGW | 23000 1/min |
| nGA | 13000 1/min |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings HFL0615 ? One-Way Needle-Roller Bearing Clutches Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
