HF2520
One-Way Needle-Roller Bearing Clutches

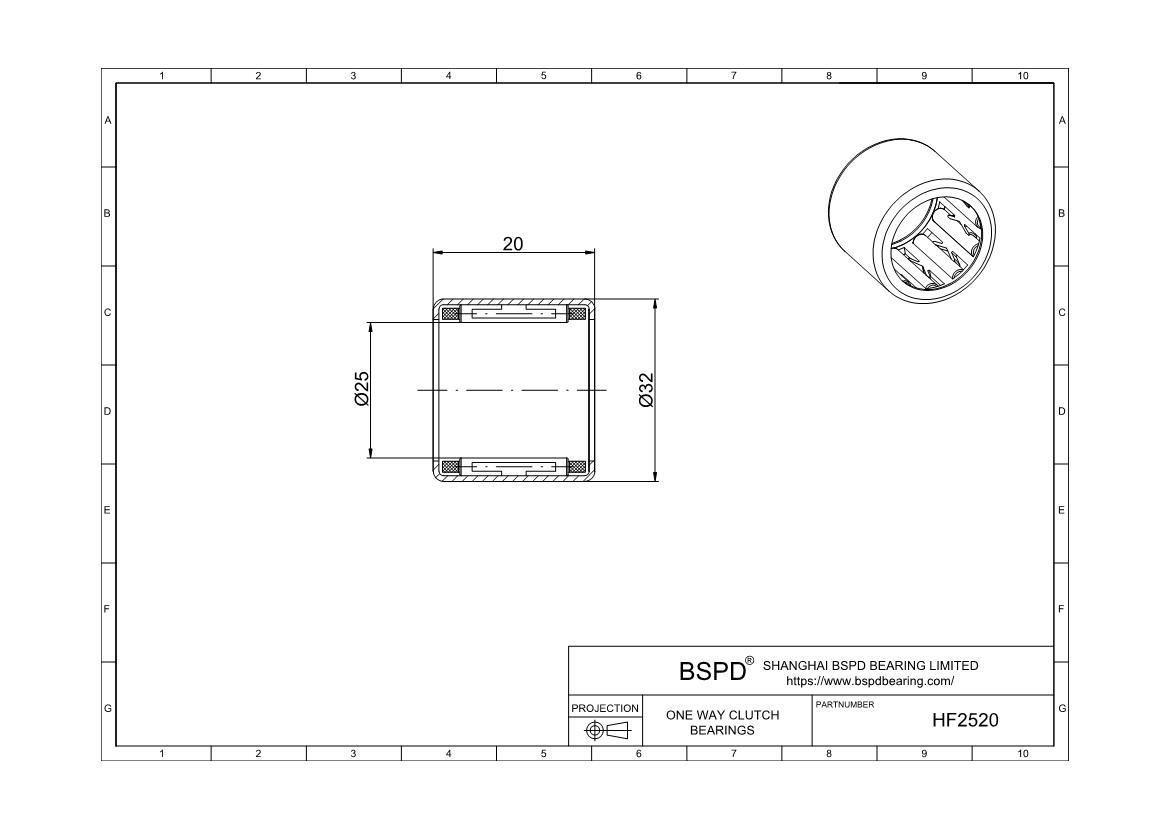

Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 32 mm； Width (Thickness): 20 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Construction | Single Row |
| Seal Type | Open |
| System of Measurement | Metric |
| Part Number | HF2520 |
| For Shaft Diameter | 25 mm |
| Bore Dia (d) | 25 mm |
| For Housing ID | 32 mm |
| Outer Dia (D) | 32 mm |
| Width (B) | 20 mm |
| Ring Material | Steel |
| Needle Material | Steel |
| Cage Material | Steel |
| Spring Material | Steel |
| Knurledy | No |
| Md per | 66 Nm |
| nGW | 5500 1/min |
| nGA | 5500 1/min |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (g) | 30 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
