H8-58E2
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 53.7"； Outer Diameter: 62.6"； Width (Thickness): 4.06";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | H8-58E2 |
| Raceway Moment (ft-lbs) | 633800 |
| Compressive Thrust(lbs) | 670000 |
| Weight(lbs) | 750 |

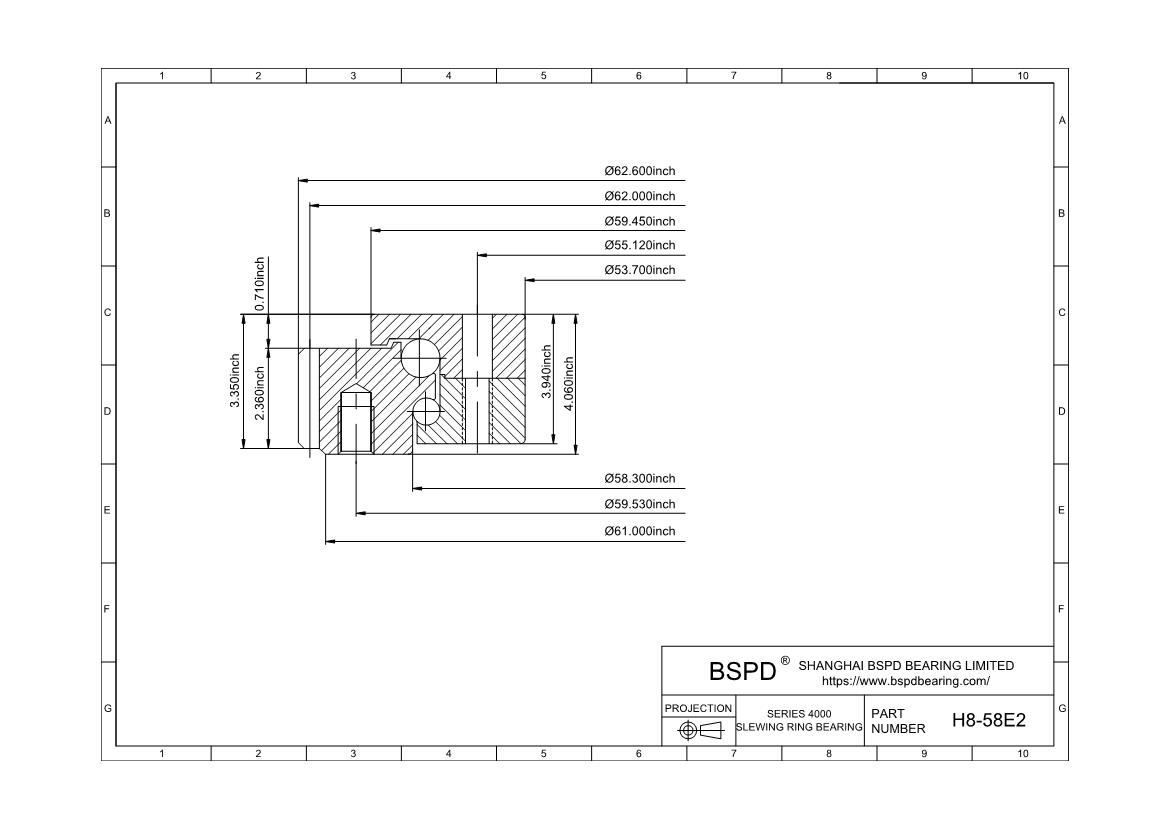

| Fig. no. | 1 |
| Outline Dimensions(inches) | |
| OD | 62.6 |
| ID | 53.7 |
| OE | 61 |
| OI | 58.3 |
| IO | 59.45 |
| HT | 4.06 |
| OH | 3.35 |
| IH | 3.94 |
| Mounting Holes | |
| OBC | 59.53 |
| OU | 3/4-10 |
| No of OBC Holes | 40 |
| IBC | 55.12 |
| IU | 3/4-10 |
| No of IBC Holes | 40 |
| Gear Data | |
| K | 0.71 |
| PD | 62 |
| DP | 2.5 |
| Tooth From 20 | STUB |
| F | 2.36 |
| NO of Teeth | 155 |
| Gear Hardness(BHN) | 180-210 |
| Max.allow tang.tooth load(lbs) | 9100 |
| Tangential Gear Capacity(lbs) | |
