H7-35N1 Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 31.0"； Outer Diameter: 38.3"； Width (Thickness): 3.23";

REQUEST FOR QUOTE

Product Attributes

Specifications
Part Number	H7-35N1
Raceway Moment (ft-lbs)	230000
Compressive Thrust(lbs)	338000
Weight(lbs)	270
Fig. no.	2

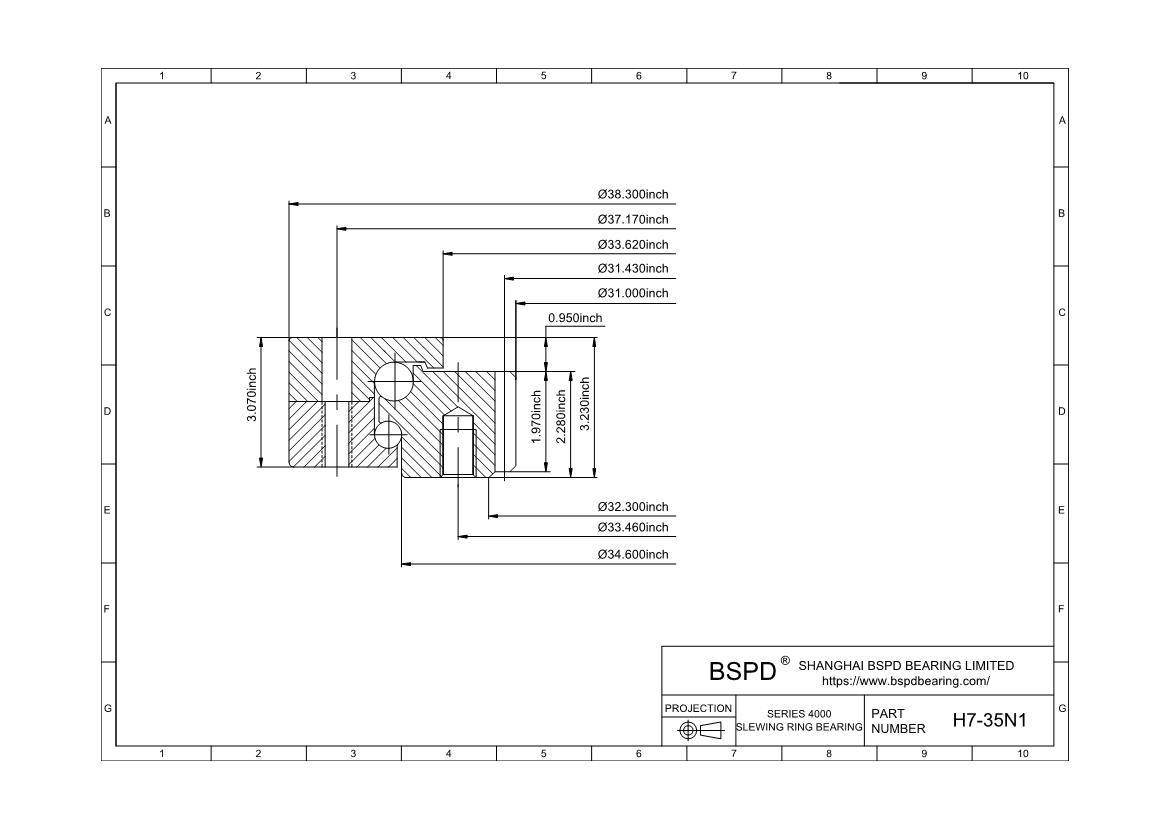

Outline Dimensions(inches)
OD	38.3
ID	31
OE	32.3
OI	33.62
IO	34.6
HT	3.23
OH	3.07
IH	2.28
Mounting Holes
OBC	37.17
OU	5/8-11
No of OBC Holes	30
IBC	33.46
IU	5/8-11
No of IBC Holes	30
Gear Data
K	0.95
PD	31.43
DP	3.5
Tooth From 20	STUB
F	1.97
NO of Teeth	110
Gear Hardness(BHN)	180-210
Max.allow tang.tooth load(lbs)	5250
Tangential Gear Capacity(lbs)
