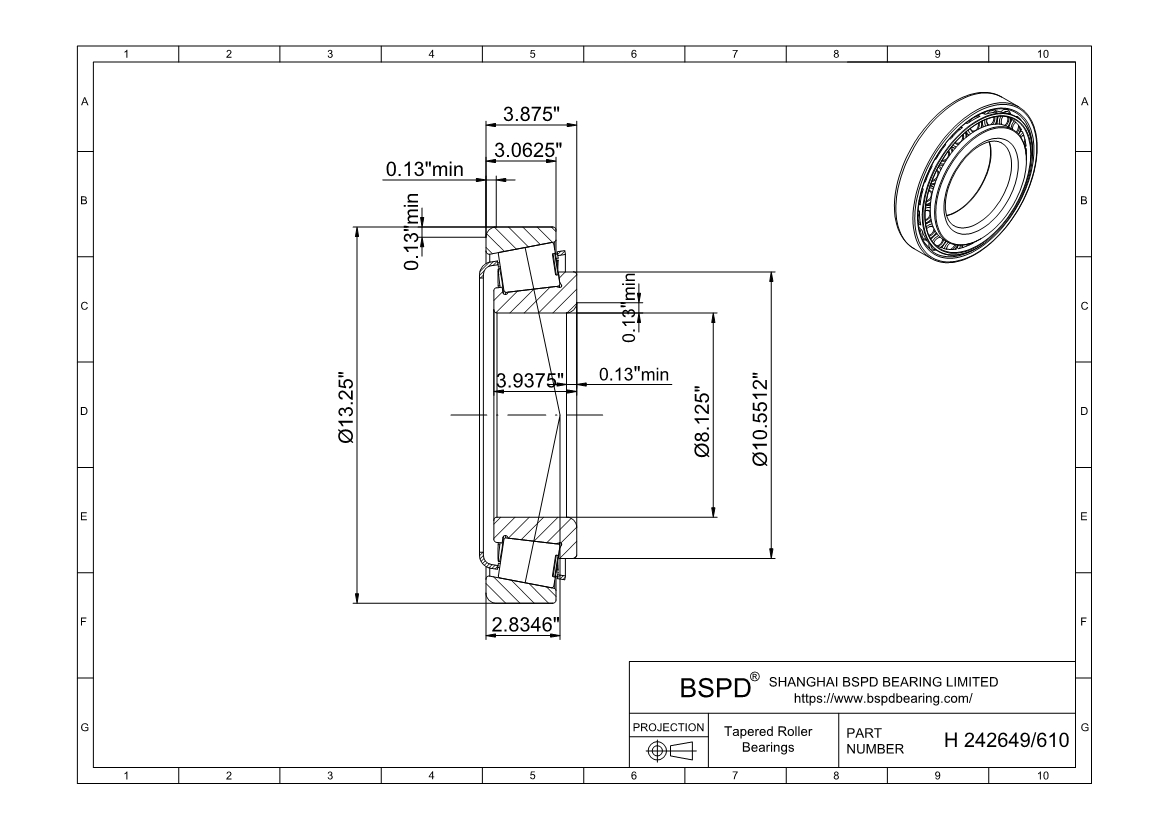

H 242649/610
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 8.1250 "； Outer Diameter: 13.2500 "； Width (Thickness): 3.8750 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | H 242649/610 |
| Bore diameter | 8.1250 " |
| Outside diameter | 13.2500 " |
| Total width | 3.8750 " |
| Shoulder diameter of inner ring | 10.5512 " |
| Widthof inner ring | 3.9375 " |
| Width of outer ring | 3.0625 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.3 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 72 |
| Basic dynamic load rating (Cr) | 1230 |
| Basic static load rating (Cor) | 2160 |
| Fatigue load limit (Pu) | 190 |
| Reference speed | 1300 r/min |
| Limiting speed | 1800 r/min |
| Mass | 34 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y) | 1.8 |
| Axial load factor (Y0) | 1 |
| Maximum diameter of shaft abutment (da) | 231 mm |
| Minimum diameter of shaft abutment (db) | 223 mm |
| Minimum diameter of housing abutment (Da) | 290 mm |
| Maximum diameter of housing abutment (Da) | 321 mm |
| Minimum diameter of housing abutment (Db) | 318 mm |
| Minimum width of space required in housing on large side face (C | 14 mm |
| Minimum width of space required in housing on small side face (C | 20.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.3 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings H 242649/610 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
