CRBT305A
Crossed Roller TYPE

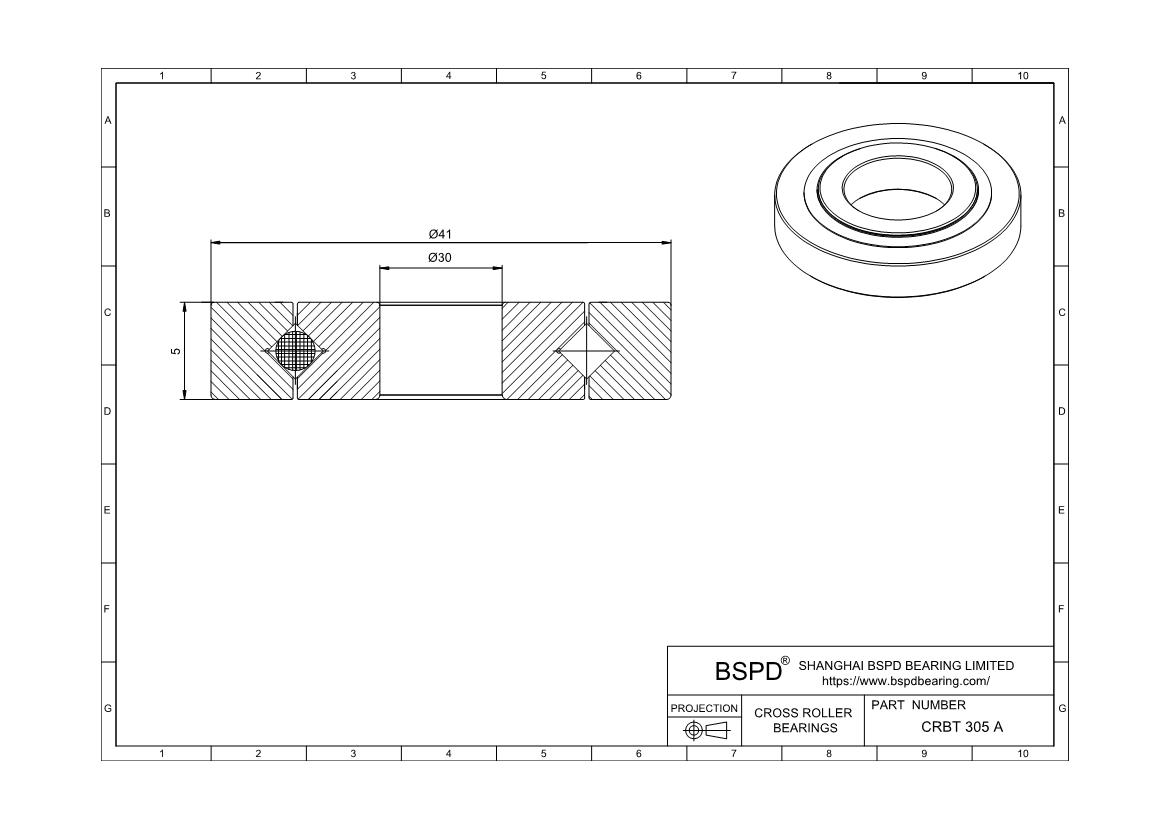

Dimensions: Bore (Inner) Diameter: 30 mm； Outer Diameter: 41 mm； Width (Thickness): 5 mm;
REQUEST FOR QUOTE
Product Attributes
| Part Number | CRBT305A |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 30 |
| Mass(kg) | 0.0207 |
| Bore Dia (d) | 30 |
| Outer Dia (D) | 41 |
| Width (B) | 5 |
| Mounting dimensions(da) | 32.5 |
| Mounting dimensions(Da) | 37 |
| r(min) | 0.15 |
| Basic load rating (radial)C kN | 1 770 |
| Basic load rating (radial)Co kN | 1 970 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBT305A ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
