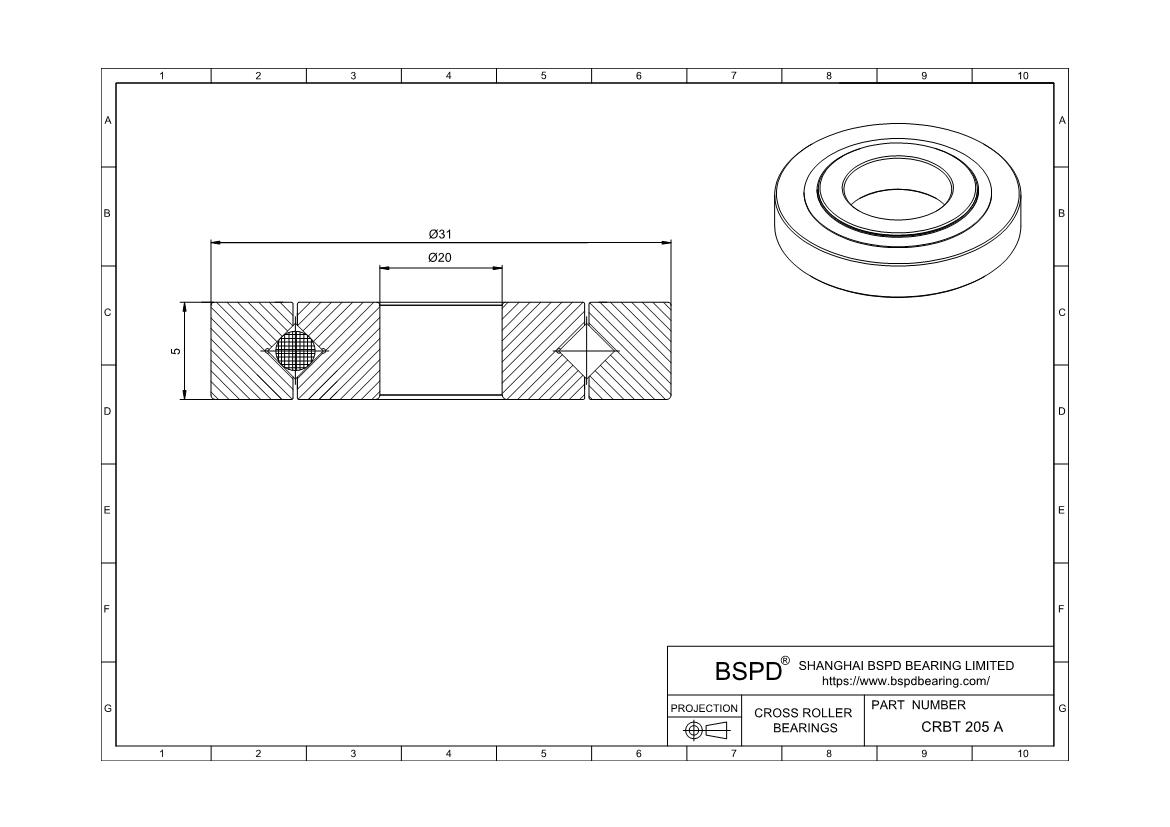

CRBT205A
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 20 mm； Outer Diameter: 31 mm； Width (Thickness): 5 mm;
REQUEST FOR QUOTE
Product Attributes
| Part Number | CRBT205A |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 20 |
| Mass(kg) | 0.0148 |
| Bore Dia (d) | 20 |
| Outer Dia (D) | 31 |
| Width (B) | 5 |
| Mounting dimensions(da) | 22.5 |
| Mounting dimensions(Da) | 27 |
| r(min) | 0.15 |
| Basic load rating (radial)C kN | 1 400 |
| Basic load rating (radial)Co kN | 1 290 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBT205A ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
