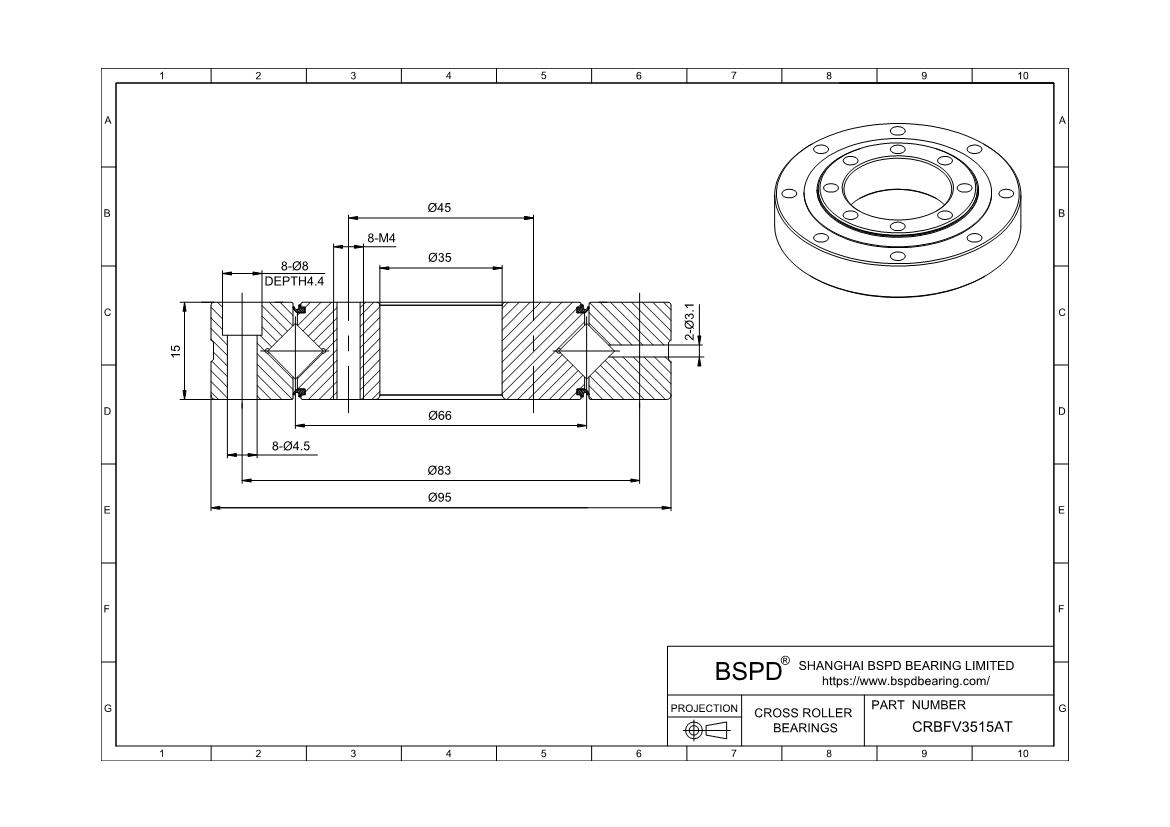

CRBFV3515AT Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 35 mm； Outer Diameter: 95 mm； Width (Thickness): 15 mm;

CRBFV3515AT
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV3515AT
THK Part Number RU66
Bearing Type Crossed Roller
Construction Single Row
Seal Type Open
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm 35
Mass(kg) 0.62
Bore Dia (d) 35
Outer Dia (D) 95
Width (B) 15
Greasing hole(d1) 3.1
r(min) 0.6
Shoulder height ds(max) 59
Shoulder height Dh(min) 74
Basic load rating (radial)C kN 17.5
Basic load rating (radial)Co kN 22.3
Inner ring PCD1 45
Inner ring Mounting hole 8-M4 through
Outer ring PCD2 83
Outer ring Mounting hole 8-φ4.5 through φ8 counter bore depth 4.4
CRBFV3515AT
