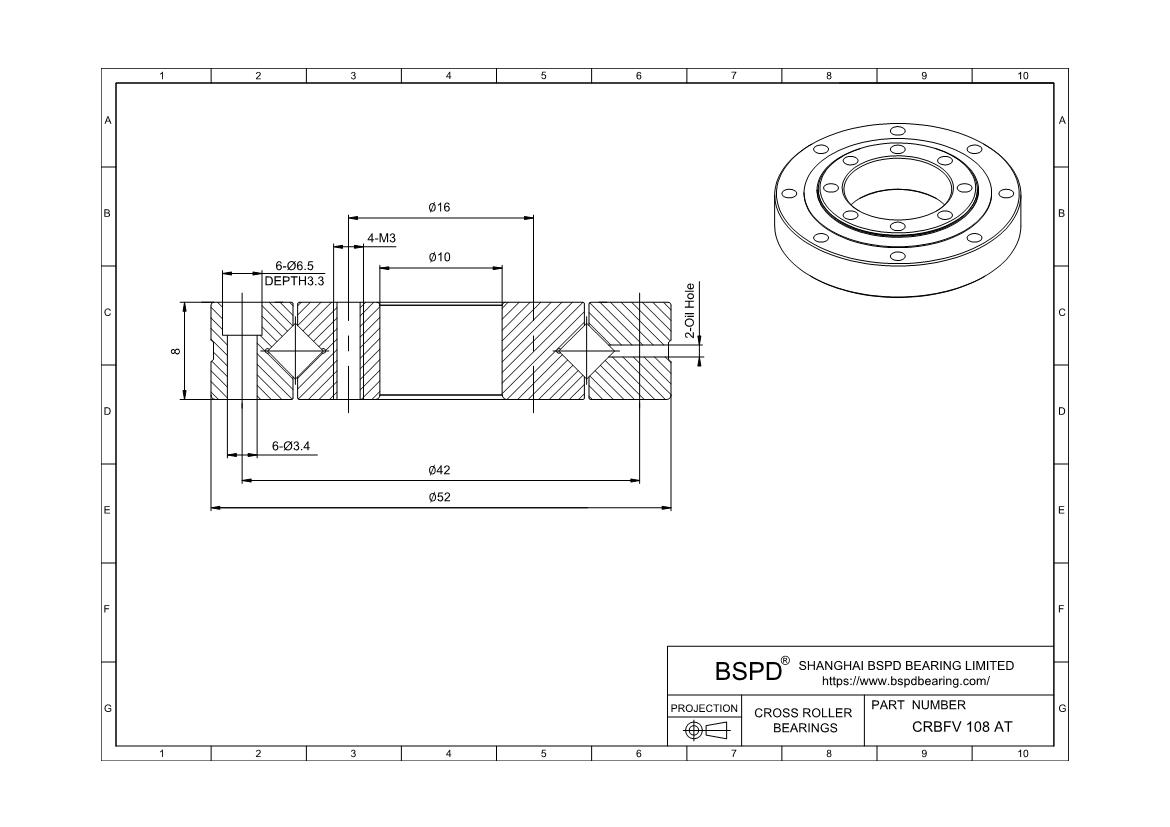

CRBFV108AT Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 10 mm； Outer Diameter: 52 mm； Width (Thickness): 8 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRBFV108AT
THK Part Number
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	10
Mass(kg)	0.12
Bore Dia (d)	10
Outer Dia (D)	52
Width (B)	8
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN	2.91
Basic load rating (radial)Co kN	2.43
Inner ring PCD1	16
Inner ring Mounting hole	4-M3 through
Outer ring PCD2	42
Outer ring Mounting hole	6-φ3.4 through φ6.5 counter bore depth 3.3

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings CRBFV108AT ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
