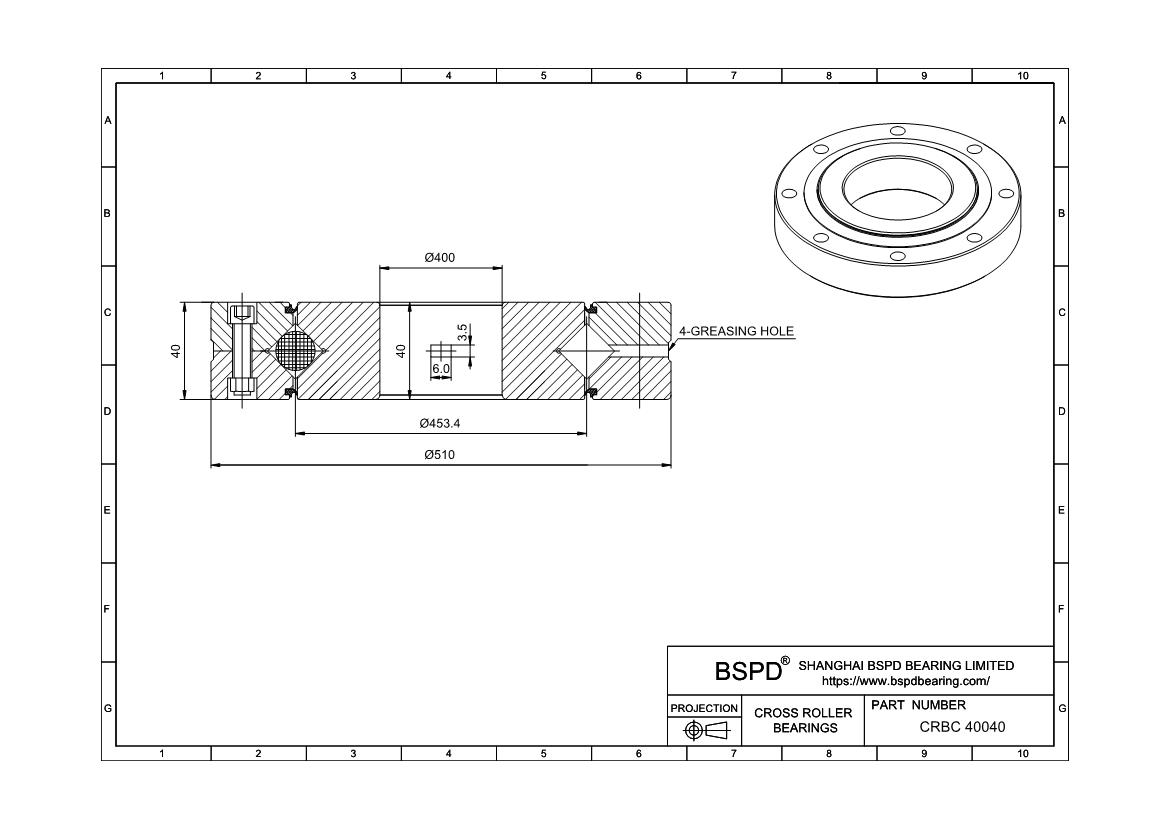

CRBC40040 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 400 mm； Outer Diameter: 510 mm； Width (Thickness): 40 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRBC40040
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
Separator	With Cage
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	400
Mass(kg)	23.5
Bore Dia (d)	400
Outer Dia (D)	510
Width (B)	40
Greasing hole(d1)
r(min)	2.5
Shoulder height ds(max)	428
Shoulder height Dh(min)	479
Basic load rating (radial)C kN	241
Basic load rating (radial)Co kN	531
