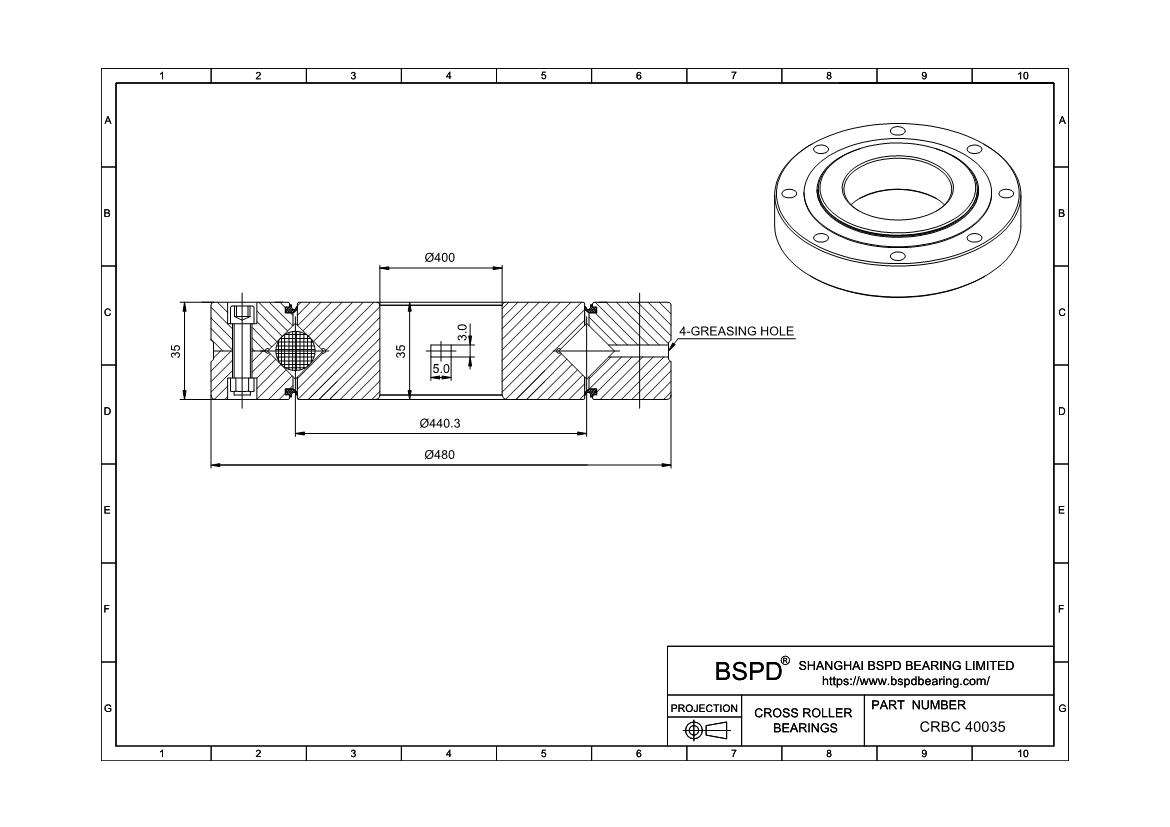

CRBC40035 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 400 mm； Outer Diameter: 480 mm； Width (Thickness): 35 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRBC40035
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
Separator	With Cage
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	400
Mass(kg)	14.5
Bore Dia (d)	400
Outer Dia (D)	480
Width (B)	35
Greasing hole(d1)
r(min)	2.5
Shoulder height ds(max)	422
Shoulder height Dh(min)	459
Basic load rating (radial)C kN	156
Basic load rating (radial)Co kN	370

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings CRBC40035 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
