CRBC15025
Crossed Roller TYPE

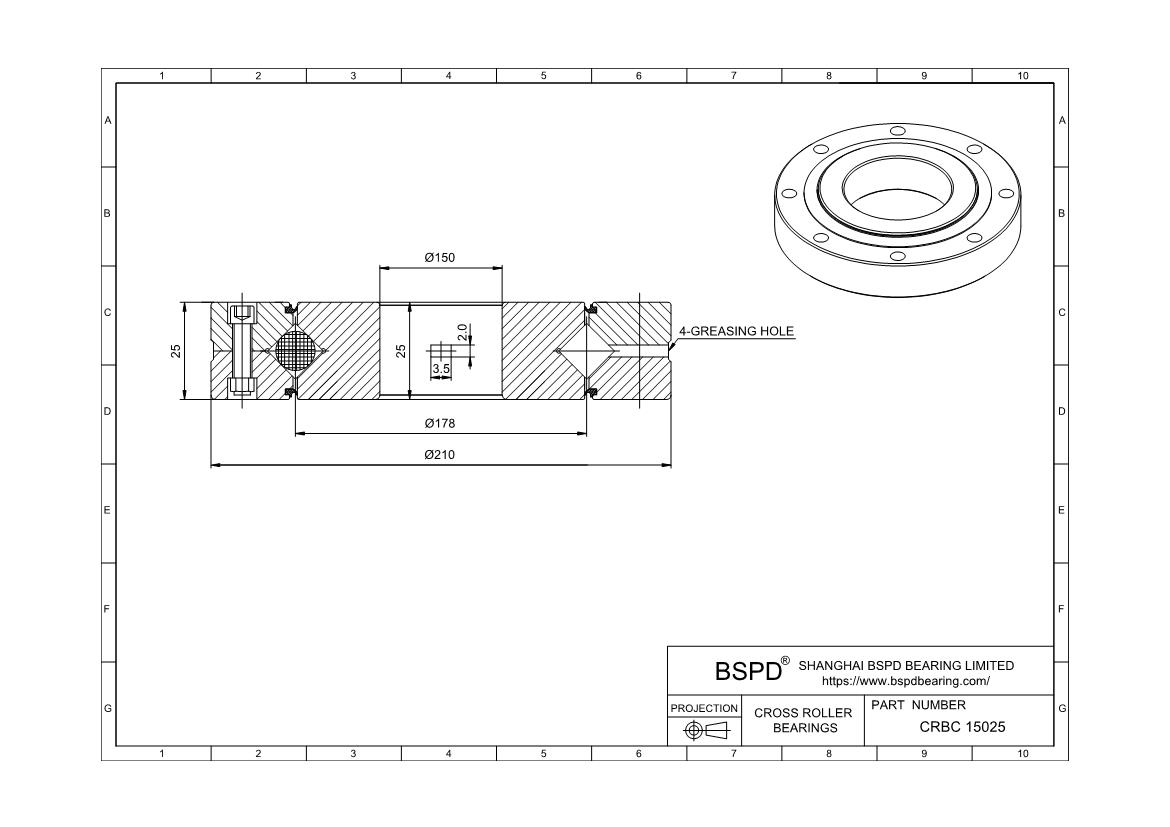

Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 210 mm； Width (Thickness): 25 mm;
REQUEST FOR QUOTE
Product Attributes
| IKO Part Number | CRBC15025 |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| Separator | With Cage |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 150 |
| Mass(kg) | 3.16 |
| Bore Dia (d) | 150 |
| Outer Dia (D) | 210 |
| Width (B) | 25 |
| Greasing hole(d1) | |
| r(min) | 1.5 |
| Shoulder height ds(max) | 164 |
| Shoulder height Dh(min) | 194 |
| Basic load rating (radial)C kN | 76.8 |
| Basic load rating (radial)Co kN | 128 |
Print PDF
Request a 3D CAD Model
