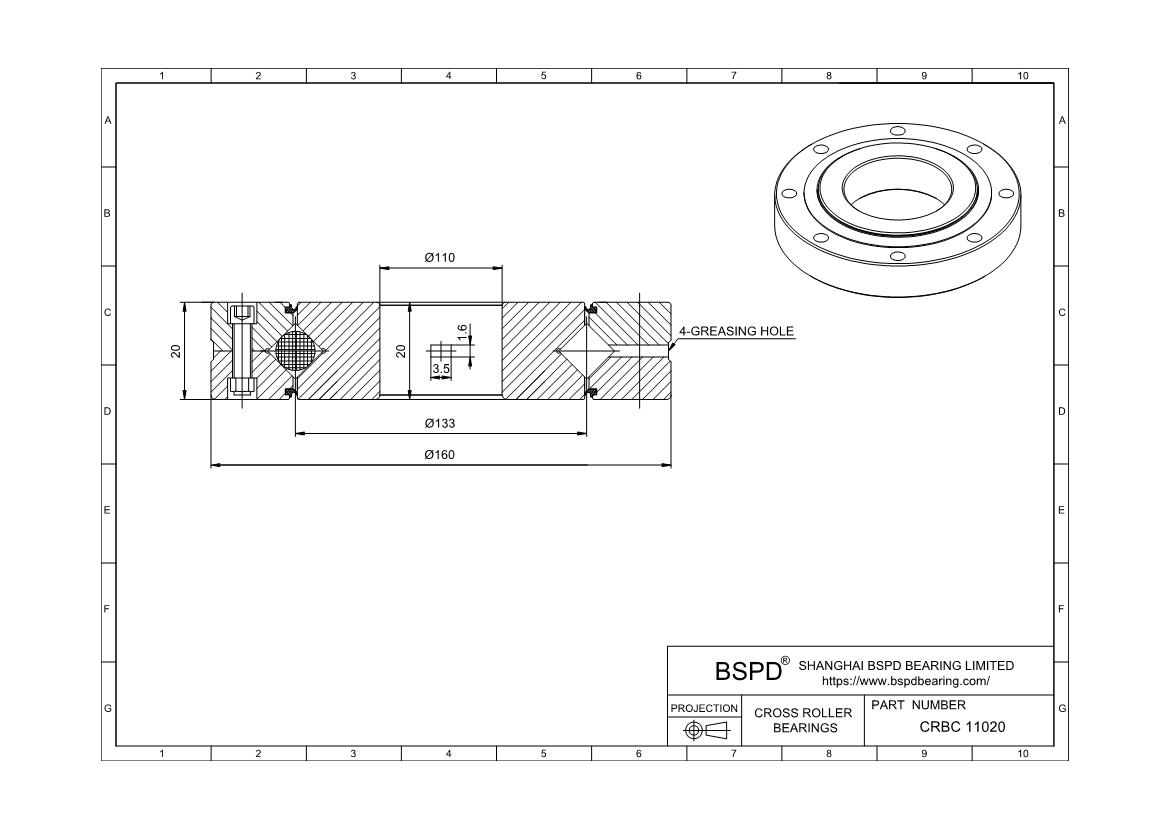

CRBC11020
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 110 mm； Outer Diameter: 160 mm； Width (Thickness): 20 mm;
REQUEST FOR QUOTE
Product Attributes
| IKO Part Number | CRBC11020 |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Open |
| Separator | With Cage |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 110 |
| Mass(kg) | 1.56 |
| Bore Dia (d) | 110 |
| Outer Dia (D) | 160 |
| Width (B) | 20 |
| Greasing hole(d1) | |
| r(min) | 1 |
| Shoulder height ds(max) | 120 |
| Shoulder height Dh(min) | 143 |
| Basic load rating (radial)C kN | 34 |
| Basic load rating (radial)Co kN | 54 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings CRBC11020 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
