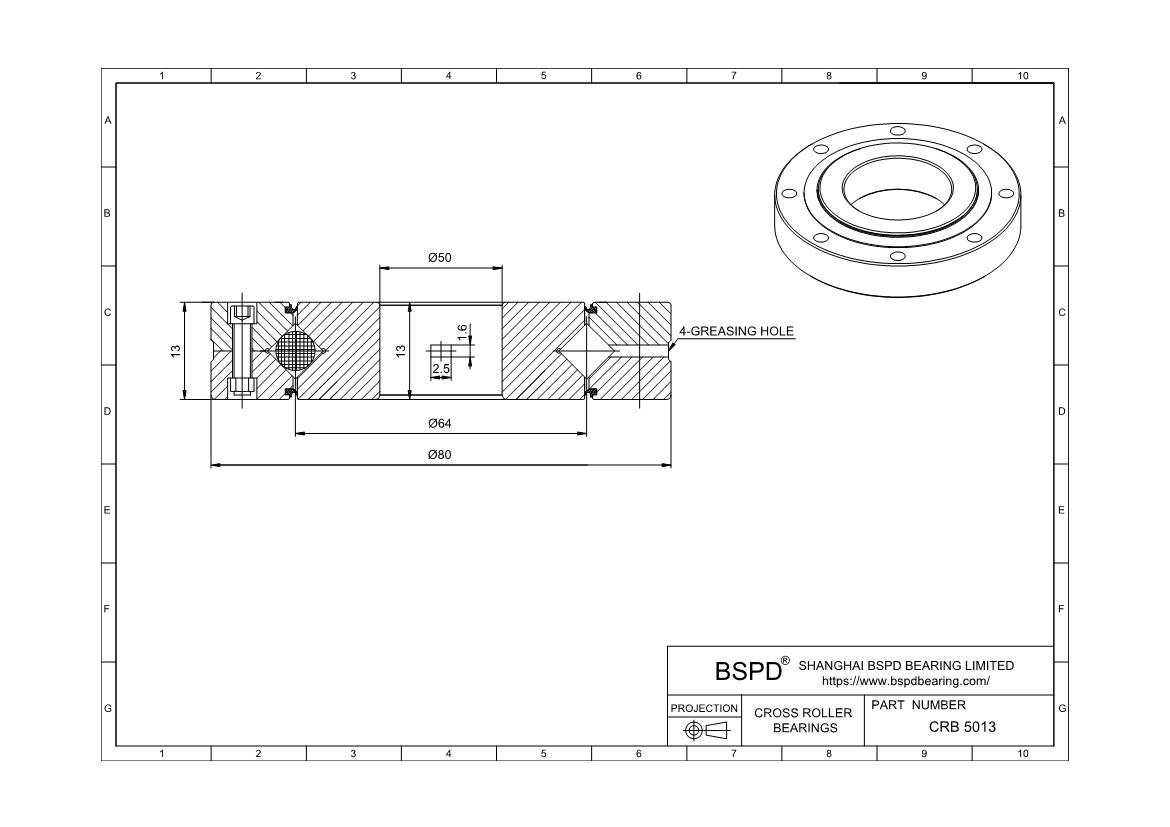

CRB5013UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 50 mm； Outer Diameter: 80 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRB5013UU
THK Part Number	RB5013UU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
Separator	Full Complement
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	50
Mass(kg)	0.27
Bore Dia (d)	50
Outer Dia (D)	80
Width (B)	13
Greasing hole(d1)
r(min)	0.6
Shoulder height ds(max)	57
Shoulder height Dh(min)	72
Basic load rating (radial)C kN	16.7
Basic load rating (radial)Co kN	20.9

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
