CEMR137ZRPP
Zirconia ZRO2 Ceramic Ball Bearings

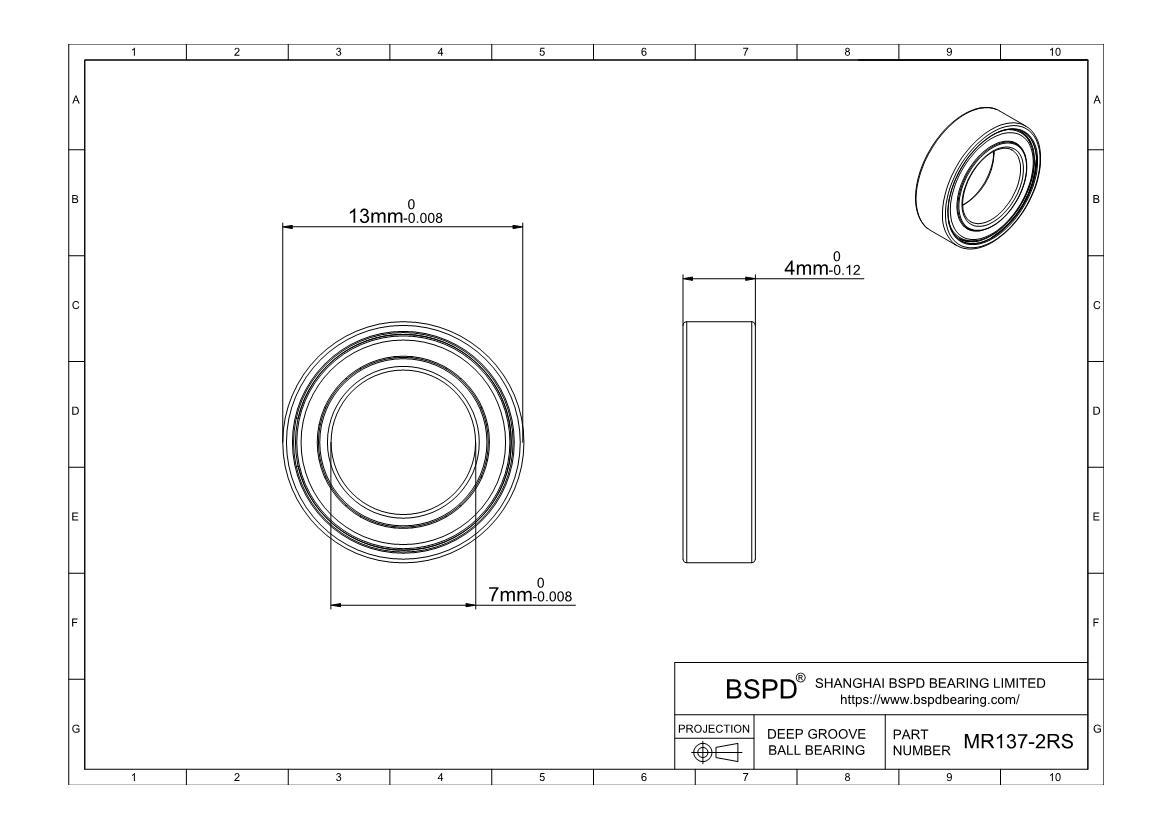

Dimensions: Bore (Inner) Diameter: 7 mm； Outer Diameter: 13 mm； Width (Thickness): 4 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Part Number | CEMR137ZRPP |
| For Shaft Diameter | 7 mm |
| Bore Dia (d) | 7 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 13mm |
| Outer Dia (D) | 13mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 4mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | Zirconia Ceramic |
| Ball Material | Zirconia Ceramic |
| Cage Material | PEEK |
| Seals Material | PTFE |
| Dynamic radial (Newtons) | 138 |
| Static radial (Newtons) | 66.3 |
| Max Speed (X1000 RPM) | 28.8 |
| Lubrication | Without |
| Shaft Mount Type | Press Fit |
| Temperature Range | -80° to 400 ? |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 to 0.0005" |
| RoHS | Compliant |
| Weight (g) | 1.5075 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Ceramic Deep Groove Ball Bearings CEMR137ZRPP ? Zirconia ZRO2 Ceramic Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
