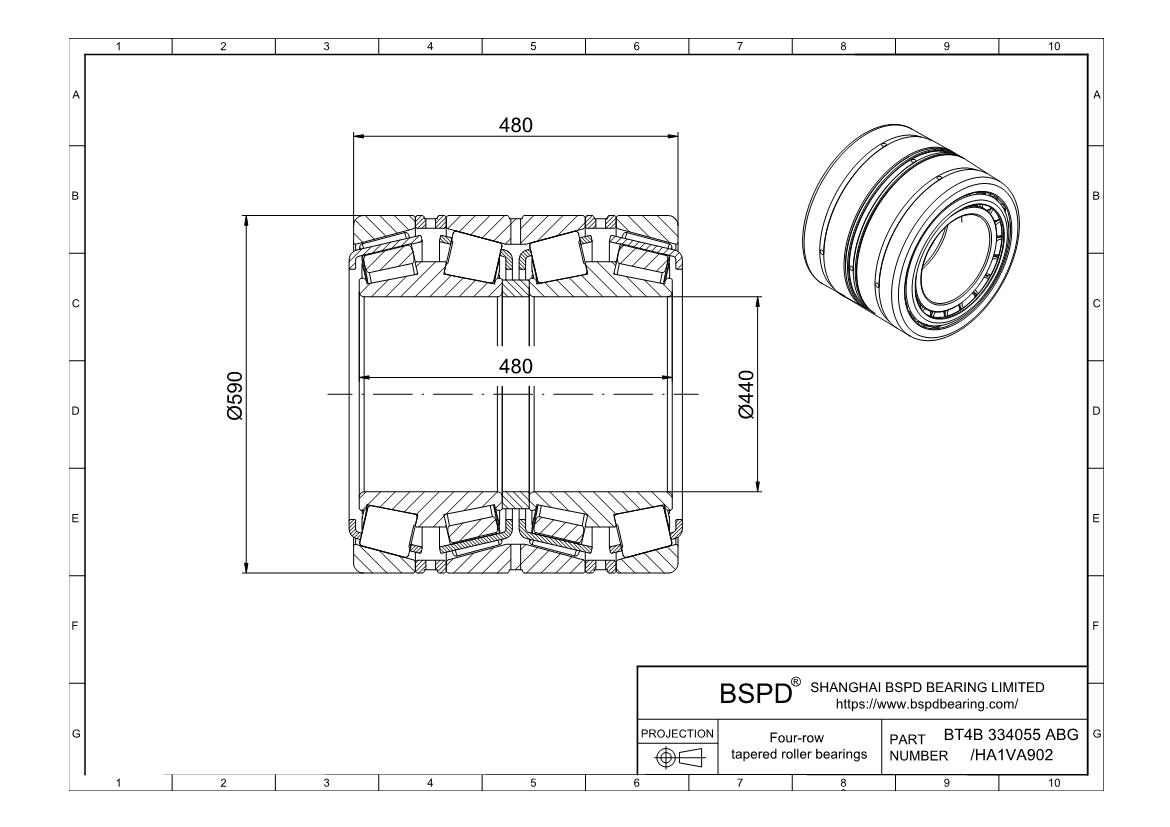

BT4B 334055 ABG/HA1VA902 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 440 mm； Outer Diameter: 590 mm； Width (Thickness): ;

BT4B 334055 ABG/HA1VA902
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 334055 ABG/HA1VA902
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia440 mm
Bore Dia Tolerance-0.045mm to 0
Outer Dia590 mm
Outer Dia Tolerance-0.05mm to 0
Total Bearing Width Over Inner Rings480 mm
Total Bearing Width Over Outer Rings480 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load1721250 lbf
Static Radial Load4500000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight804.69 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 334055 ABG/HA1VA902
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
