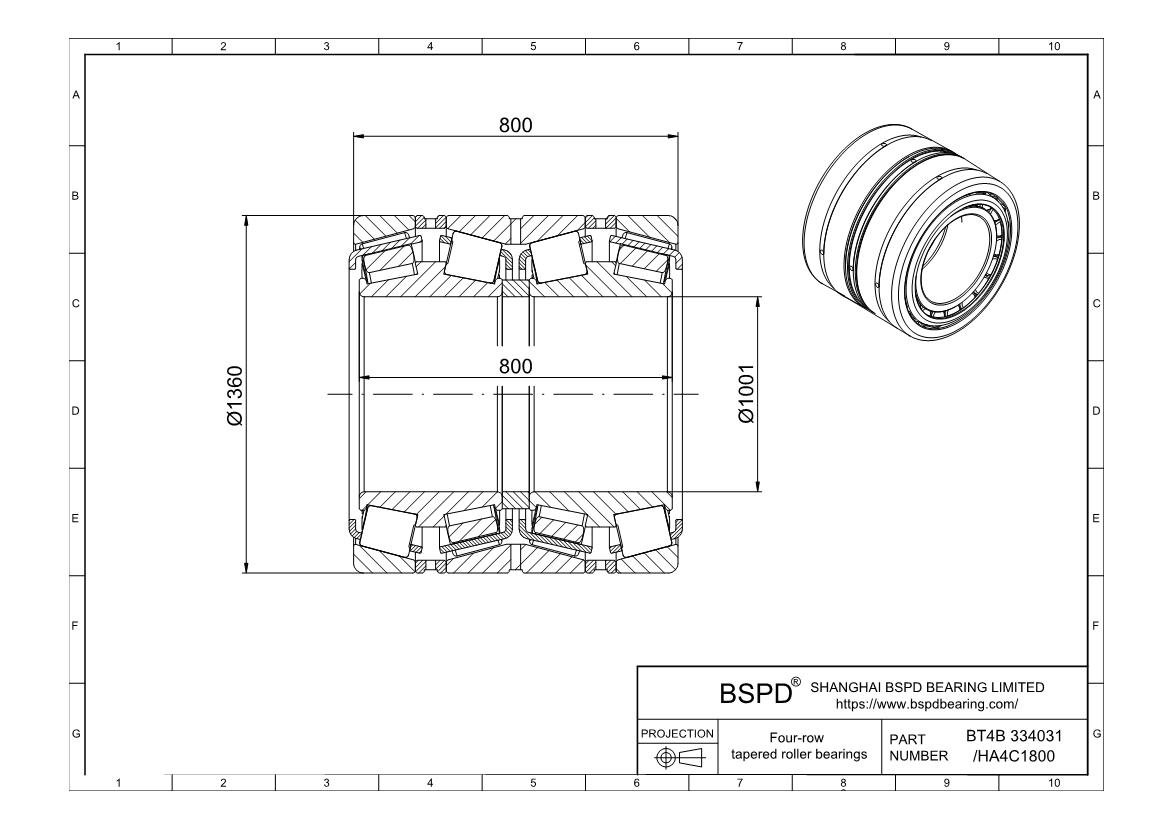

BT4B 334031 AG/HA4 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 1001 mm； Outer Diameter: 1360 mm； Width (Thickness): ;

BT4B 334031 AG/HA4
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 334031 AG/HA4
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia1001 mm
Bore Dia Tolerance-0.13mm to 0
Outer Dia1360 mm
Outer Dia Tolerance-0.165mm to 0
Total Bearing Width Over Inner Rings800 mm
Total Bearing Width Over Outer Rings800 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load6682500 lbf
Static Radial Load19125000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight7760.27 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 334031 AG/HA4
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
