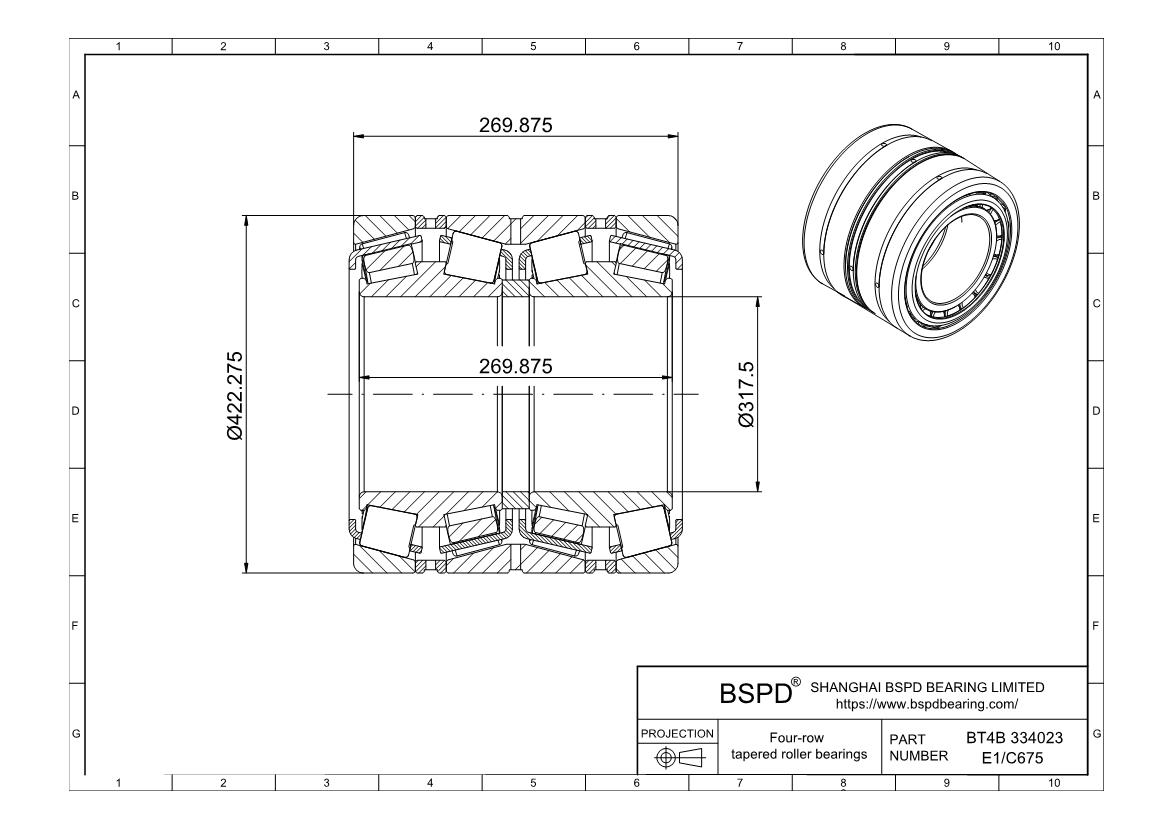

BT4B 334023 E1/C675 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 317.5 mm； Outer Diameter: 422.275 mm； Width (Thickness): ;

BT4B 334023 E1/C675
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 334023 E1/C675
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia317.5 mm
Bore Dia Tolerance-0.04mm to 0
Outer Dia422.275 mm
Outer Dia Tolerance-0.045mm to 0
Total Bearing Width Over Inner Rings269.875 mm
Total Bearing Width Over Outer Rings269.875 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load643500 lbf
Static Radial Load1473750 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight208.34 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 334023 E1/C675
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
