BT4B 334015 BG/HA1VA901 Four-row tapered roller bearings

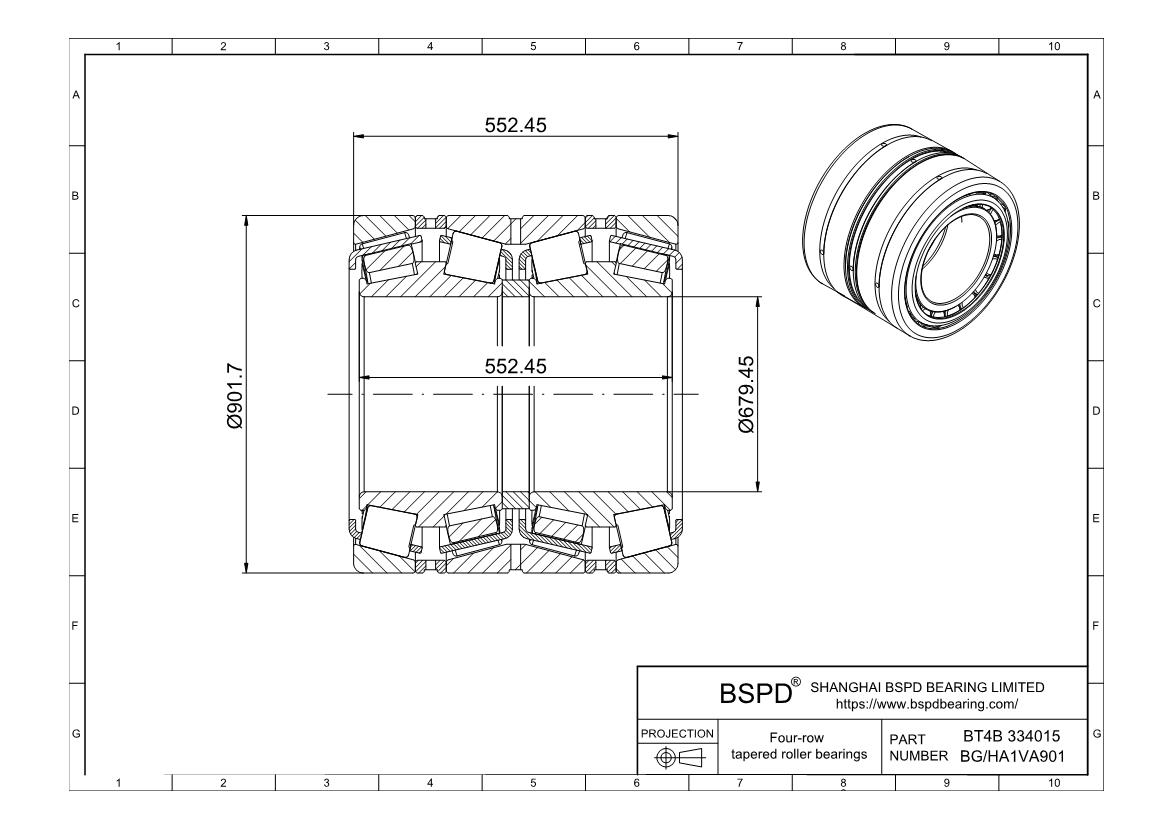

Dimensions: Bore (Inner) Diameter: 679.45 mm； Outer Diameter: 901.7 mm； Width (Thickness): ;

BT4B 334015 BG/HA1VA901
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 334015 BG/HA1VA901
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia679.45 mm
Bore Dia Tolerance-0.08mm to 0
Outer Dia901.7 mm
Outer Dia Tolerance-0.01mm to 0
Total Bearing Width Over Inner Rings552.45 mm
Total Bearing Width Over Outer Rings552.45 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load2970000 lbf
Static Radial Load8100000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight2138.48 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 334015 BG/HA1VA901
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
