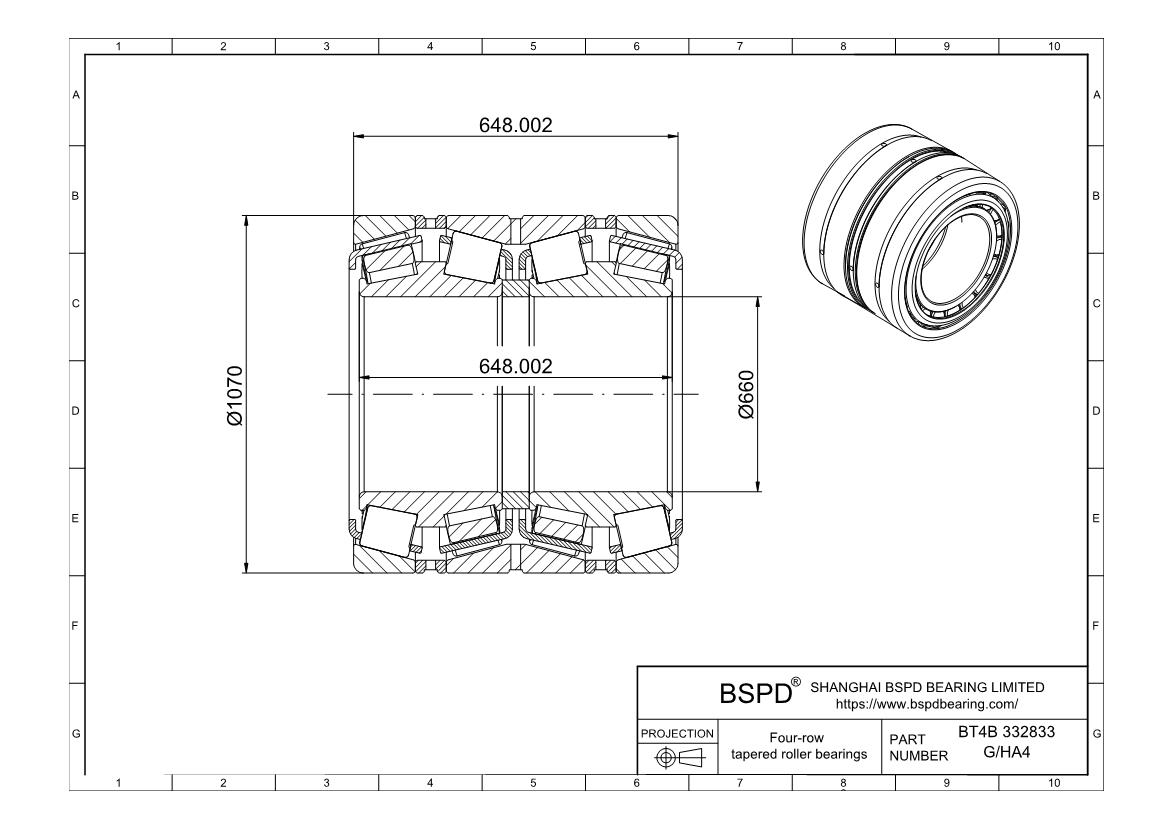

BT4B 332833 G/HA4 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 660 mm； Outer Diameter: 1070 mm； Width (Thickness): ;

BT4B 332833 G/HA4
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 332833 G/HA4
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia660 mm
Bore Dia Tolerance-0.08mm to 0
Outer Dia1070 mm
Outer Dia Tolerance-0.13mm to 0
Total Bearing Width Over Inner Rings648.002 mm
Total Bearing Width Over Outer Rings648.002 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load4365000 lbf
Static Radial Load9337500 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight5033.15 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 332833 G/HA4
