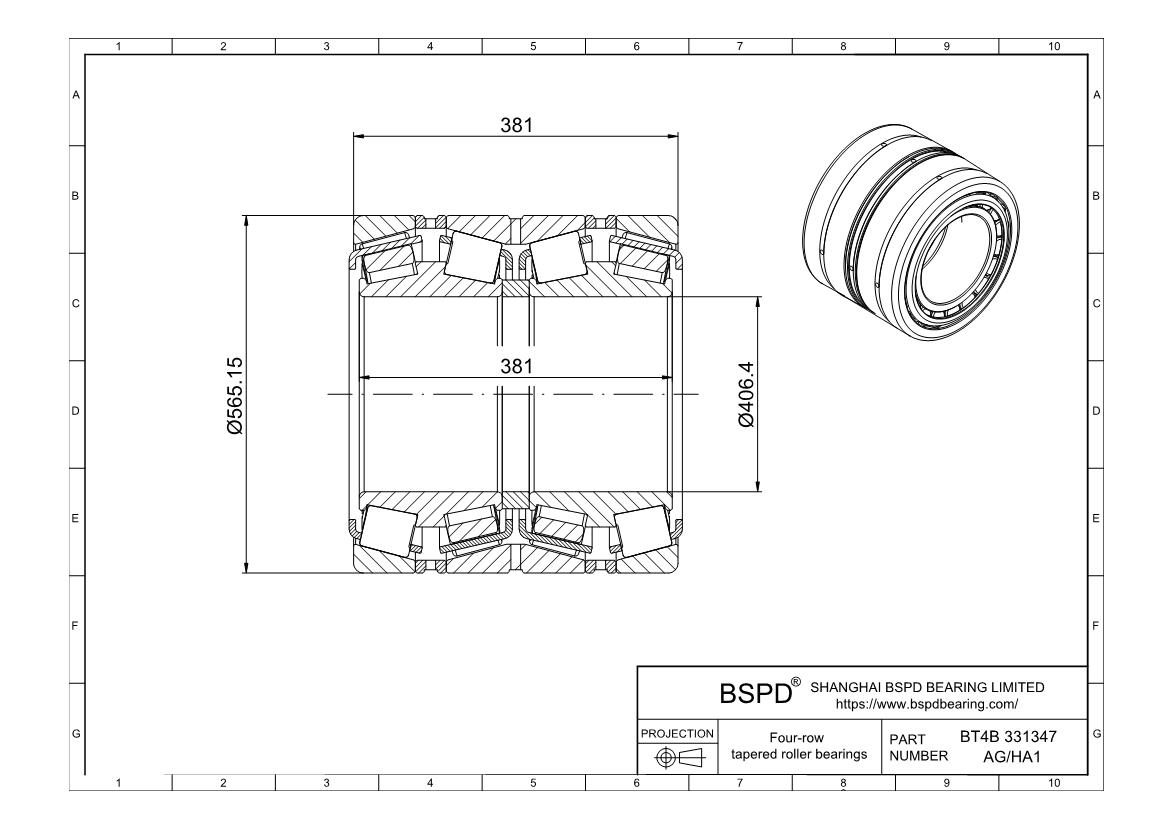

BT4B 331347 AG/HA1 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 406.4 mm； Outer Diameter: 565.15 mm； Width (Thickness): ;

BT4B 331347 AG/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 331347 AG/HA1
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia406.4 mm
Bore Dia Tolerance-0.045mm to 0
Outer Dia565.15 mm
Outer Dia Tolerance-0.05mm to 0
Total Bearing Width Over Inner Rings381 mm
Total Bearing Width Over Outer Rings381 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load1361250 lbf
Static Radial Load3510000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight661.39 lb
Radial ClearanceStandard (Available in C3/C4/C5)
