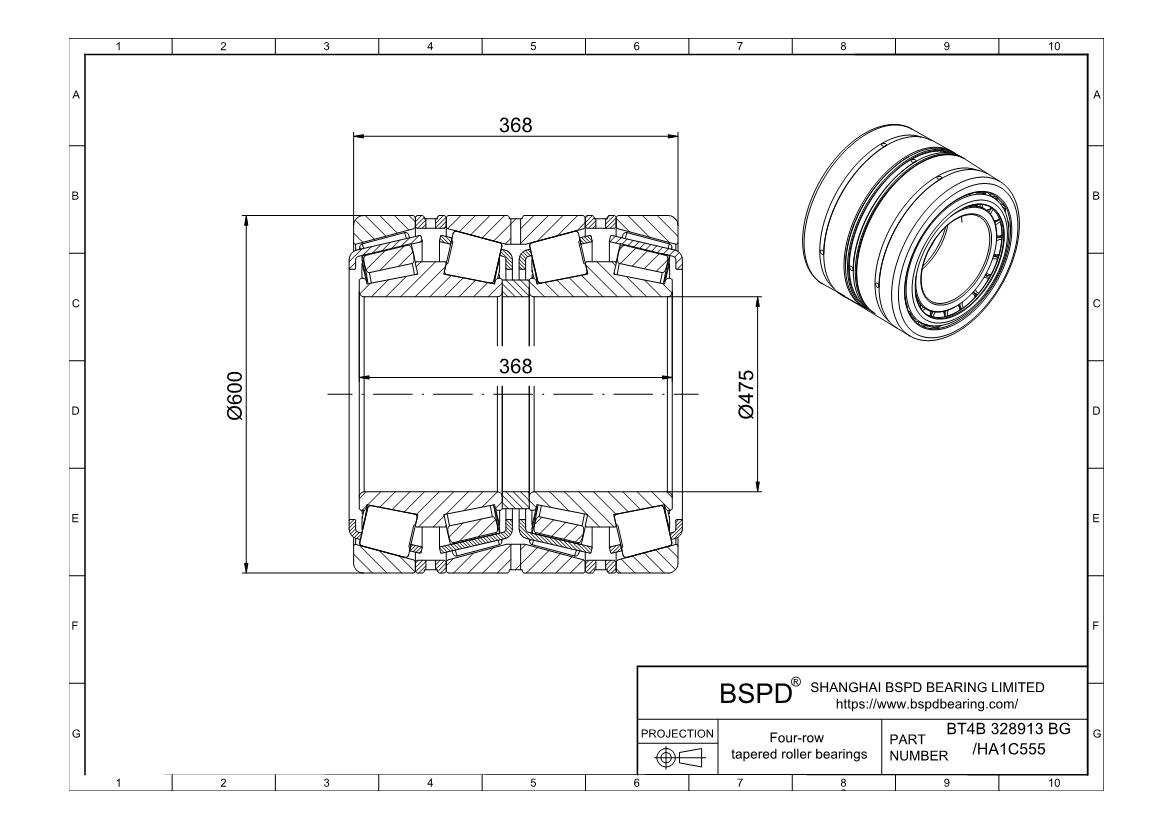

BT4B 328913 BG/HA1C555 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 475 mm； Outer Diameter: 600 mm； Width (Thickness): ;

BT4B 328913 BG/HA1C555
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 328913 BG/HA1C555
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia475 mm
Bore Dia Tolerance-0.045mm to 0
Outer Dia600 mm
Outer Dia Tolerance-0.05mm to 0
Total Bearing Width Over Inner Rings368 mm
Total Bearing Width Over Outer Rings368 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load1287000 lbf
Static Radial Load3735000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight551.16 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 328913 BG/HA1C555
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
